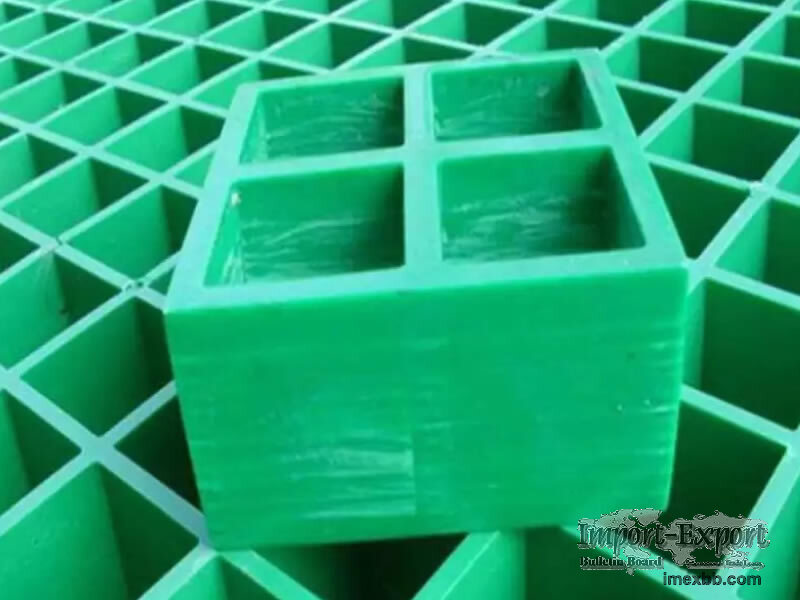

Heavy-Duty FRP Grating

Reinforced Heavy-Duty Grating: Superior Stability And Support For Demanding
Environments
Specifically built for high load-bearing and high-traffic areas, this robust
and durable grating is ideal for industrial and commercial environments with
heavy machinery.
Hengshui Hongwo Technology Co., Ltd. supplies Heavy-Duty FRP (Fiberglass
Reinforced Plastic) Grating, designed for various industrial and commercial
environments. Our high-quality FRP Grating ensures durability and longevity
under challenging conditions. We offer solutions tailored to your needs. For
more information, contact Hengshui Hongwo Technology Co., Ltd., where quality
and reliability are guaranteed.

High-Load FRP Grating
High-Load FRP Grating
Heavy-Duty Composite Grating
Heavy-Duty Composite Grating
Structural Strength FRP Grating
Structural Strength FRP Grating
Reinforced Industrial Grating
Reinforced Industrial Grating
Heavy-Duty FRP Grating Specification
Dimensions:
Length: Available from 3000 mm to 6000 mm
Width: Ranges from 1000 mm to 1500 mm
Thickness: Options from 25 mm to 60 mm
Mesh Size:
Small Mesh: Approximately 20 mm x 20 mm for finer applications
Large Mesh: Up to 50 mm x 50 mm for more robust needs
Mechanical Strength:
Load-bearing Capacity: Up to 7500 N/m² for heavy-duty applications
Tensile Strength: Ranging from 300 MPa to 400 MPa
Flexural Strength: Approximately 250 MPa
Color Variations:
Standard options: Gray, Green, Yellow, Blue, Red
Custom color matching available on request
Surface Treatment:
Anti-Slip Gritted for enhanced safety
Smooth for aesthetic appeal
Concave for better grip
Custom texturing as per specific use-cases
Packaging and Shipping:
Palletized with standard pallet dimensions of 1000 mm x 1500 mm or custom sizes
Each grating piece wrapped in protective material
Custom packaging solutions based on shipping requirements
Other:
UV Resistance: Enhanced UV inhibitors for prolonged outdoor use
Chemical Resistance: Customized resin types for specific chemical resistance
Fire Resistance: Complies with fire safety standards like ASTM E84
Temperature Tolerance: Effective operation in temperatures ranging from -40°C
to +80°C
Note: The above specifications are illustrative and can be customized to meet
specific requirements. It’s important to work closely with Hengshui Hongwo
Technology Co., Ltd. for precise product specifications and capabilities.

Application
Our Heavy-Duty FRP Grating is versatile and can be applied in numerous
settings. Key applications include:

Industrial platforms and walkways, offering safe and sturdy access in areas
with heavy foot traffic.
Chemical plants, where corrosion resistance is vital.
Water treatment facilities, providing durable and reliable solutions in wet and
slippery environments.
Marine applications, such as docks and marinas, where the grating is exposed to
harsh sea conditions and requires resistance to saltwater.
Oil and gas industries, where fire resistance and durability are paramount.
Water treatment facilities
Water treatment facilities
Drainage Channels
Drainage Channels
Chemical Plants
Chemical Plants
Industrial Platforms
Industrial Platforms
Features
The Heavy-Duty FRP Grating from Hengshui Hongwo Technology Co., Ltd. boasts a
range of features that set it apart:

High Strength-to-Weight Ratio: Lightweight yet incredibly strong, ensuring easy
installation and long-term durability.
Corrosion Resistance: Exceptionally resistant to a wide range of chemicals,
making it ideal for harsh industrial environments.
Non-Conductive: An excellent insulator against heat and electricity, enhancing
safety in electrical and high-temperature areas.
Slip Resistance: Designed with safety in mind, our grating offers superior slip
resistance, crucial in wet or oily conditions.
Fire Resistance: Compliant with industry standards for fire resistance,
providing an additional layer of safety.
Low Maintenance: Resistant to rust and decay, reducing the need for regular
maintenance and replacement.
Alias And Similar Names
High-Load FRP Grating: Emphasizing its load-bearing capacity, High-Load FRP
Grating is tailored for areas with intense traffic and weight. It’s the go-to
solution for sectors needing support for heavy equipment and machinery.
Heavy-Duty Fiberglass-Reinforced Plastic Grating: This name highlights the
material composition, underscoring the grating’s ability to withstand harsh
conditions while offering substantial strength, ideal for heavy-duty industrial
use.
Reinforced Industrial Grating: This alias emphasizes the reinforced aspect,
offering superior stability and support. Reinforced Industrial Grating is ideal
for demanding environments requiring extra reinforcement.
Structural Strength FRP Grating: This name accentuates its capability to
support substantial structural loads, making Structural Strength FRP Grating
essential for heavy industrial and construction applications.
Heavy-Duty Composite Grating: Focusing on its composite nature, Heavy-Duty
Composite Grating merges multiple material benefits, offering a versatile
solution for various challenging industrial scenarios.
