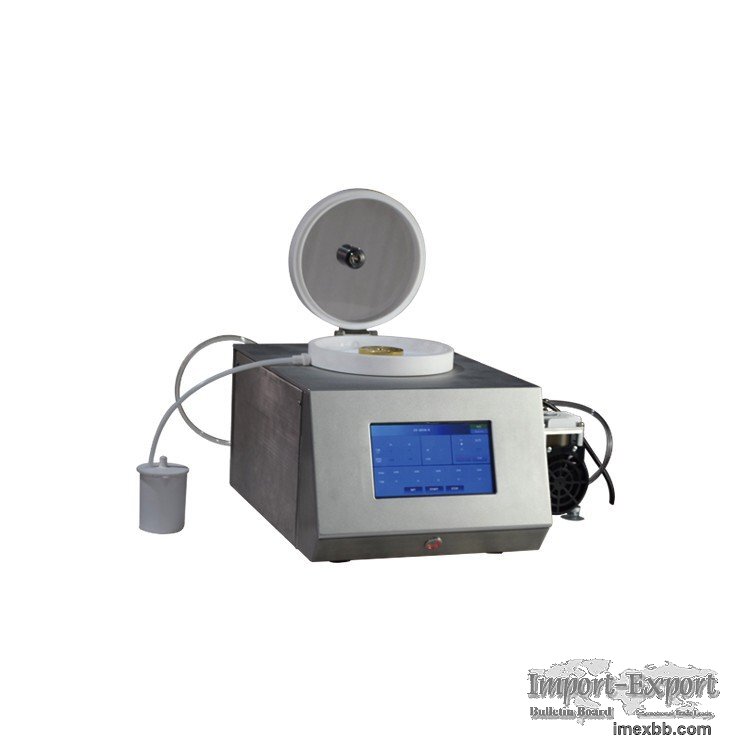

heated spin coater with gold-plated vacuum chuck

4-inch anti-corrosion heating spin coater
This product is a spin coater or spin processor, which uses centrifugal force
generated by high-speed rotation to coat film materials. This model adopts a
special design, so that the substrate can be heated simultaneously during the spin
coating process. The maximum heating temperature is 200℃, which can meet the
temperature requirements of some solutions in the spin coating process. At the same
time, the equipment is also equipped with a liquid drain pipe and a waste tank to
facilitate customers to collect waste liquid and effectively prevent corrosive
liquid from splashing into the environment.

Technical parameters:
Power supply AC220V, 50Hz
Chamber material PTFE
Upper cover PVC (Polyvinyl chloride, for observing the coating state
conveniently)
Sample stage Gold-plated copper plate, with good thermal conductivity
Substrate size Diameter ≤ 4 inches (100mm)
Heating mode Ceramic heating ring
Operating temperature RT-200℃
Rotation speed 0-3000rpm
Speed resolution 1rpm
Operation Mode 7 inch HD LCD touch screen
Glue dropping mode Manual glue dispensing, liquid can be supplied during spin
coating
Liquid drain pipe and waste liquid tank PTFE
Spin coating curve Each curve has 5 segments, a total of 5 curves can be
stored
Vacuum chuck Gold-plated, 3 pieces with diameters of 10mm, 25mm, 55mm
vacuum pump Oil-less pump
Pumping speed 50 L/min

Minimum Order: 1 sets
