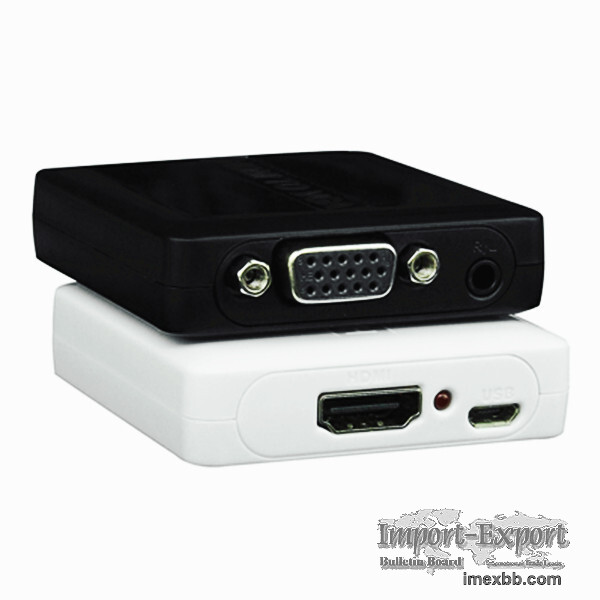

HDMI to VGA Converter VGA output HDMI input convert TMDS to VGA+Audio

HDMI to VGA Converter VGA output HDMI input convert TMDS signal to VGA+Audio
analog signal

INTRODUCTION
The HDMI to VGA Converter allows HDMI signal to be converted easily to VGA+
audio signal which was showed on VGA display.

Features:
1.One HDMI input, convert TMDS signal to VGA+Audio analog signal
2.Support audio/video input:TMDS signal
3.Support video output:VGA analog
4.Support audio output:3.5mm audio analog
5.LED indicator: when the signal source is working or the Micro USB is
powered,The red LED will light on
6.Support AWG26 HDMI cable,hdmi input can be up to 10m.
7.No signal loss
8.Easy to install
9.Charged by Micro USB cable

Specifications:
VGA signal input: support SXGA/SGA/UGA(60HZ)
Audio input: 3.5mm Analog
HDMI resolution: up to 1920x1080/60Hz
Max bandwidth: 150Mhz
Max baud rate: 1.5Gbps
Input cable length: ≤10m AWG26 HDMI standard cable
Input DDCsignal: 5Volts p-p (TTL)
Max working current: 252mA
Operating Temperature range: (-15 to +55℃)
Operating Humidity range: 5 to 90%RH (No Condensation)
Dimension (L x W x H): 63x56x15 (mm)
Weight: 33g

Operation and connections:
1.Connect HDMI signal source to the input of converter with a HDMI cable
2.Connect VGA+R/L display port to the output of converter with a vga cable
3.Connect Micro USB cable to the convert

Packing accessories:
1. HDMI converter
2. Micro USB cable
3. User manual
