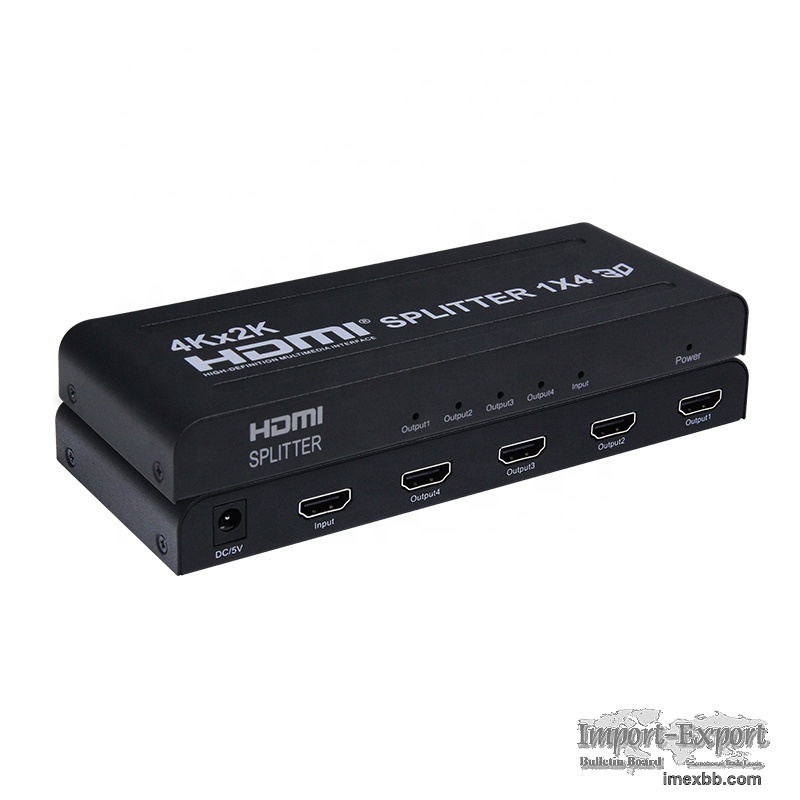

HDMI 1X4 Splitter 1 input 4 output 4Kx2K 3D 1080p

HDMI 1X4 Splitter 1 input 4 output 4Kx2K 3D 1080p

Introduction
The 1x4 HDMI Splitter uses a single HDMI source, accessing to multiple HDMI
sinks. The Splitter allows 1 HDMI device to be split easily to 4 HDMI
compatible monitors or projectors. The Splitter can also be placed at the end
of a long HDMI cable to regenerate the HDMI signal.

FEATURES
One HDMI input signal split to four HDMI sink devices
Support 3D
Support CEC
Support deep color 30bit, 36bit
Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
S , upport signal retiming
Support input up to 15m AWG26 HDMI standard cable length, output up to 25m
AWG26 cable length
No loss of quality
Installs in minutes
Need DC5V/1A power supply

SPECIFICATIONS:
HDMI resolution: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/4k
S , upport video color format: 24bit/deep color 30bit, 36bit
Support audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
M , ax bandwidth: 225MHz
Max baud rate: 6.75Gbps
Input/Output TMDS signal: 0.5~1.5Volts p-p(TTL)
Input/Output DDC signal: 5Volts p-p (TTL)
Input cable distance: ≤15m AWG26 HDMI standard cable
Output cable distance: ≤25m AWG26 HDMI standard cable
Max working current: 600mA
Power adapter format..Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range: (-15 to +55)
Operating Humidity range: 5 to 90%RH (No Condensation)
Dimension (L x W x H): 115x61x25 (mm)
Weight: 190g

The package contains:
1. HDMI splitter 1x4
2. Power adapter
3. User Manual
