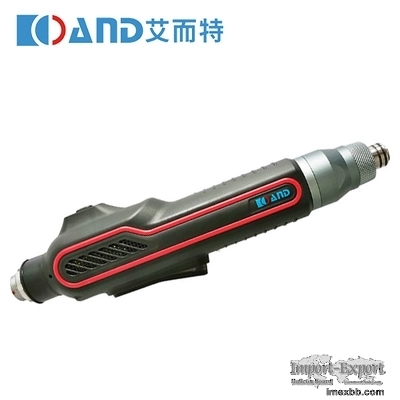

​HD2120 Low Noise Smart Electric Screwdriver DC 40W 5000Rpm Max Speed

Low noise Screwdriver HD2120 Wide torque range coverage Support PLC, MES
systems

Professional concept of modular and combined design solution
Leading servo motor drive plus precision reduction structure
Blow/suction optional automatic feeding method
Safe and reliable special cable and connector configuration
Multi-style, multi-series and multi-specification product selection
Beautiful and compact appearance structure, convenient and flexible
installation
method and suitable for a variety of applications


This screwdriver works with both ACT and HNA series controller. It supports a
torque out put range



of 0.02-0.23 N.m and the maximum rotate per minute is 5000. The weight is about
0.4 Kg.



There's optional mounting plate avaliable for this model HD2120.



You can consult our technical staff for more information.



Specifications

Model Adapted
controller Tool cable Torque output range Start-up method Maximum
Speed
(rpm) Adapted outer diameter of screw(mm) Weight
(kg)
kgf.cm N.m lbf.in Trigger button Machine Screw Tapping Screw
HD2120 ACT-H00XX
/HNA-H21XX C113X
/C123X
/C124X 0.2～2.35 0.02～0.23 0.18～2.04 √ 5000 1.0～
2.3 1.0～2.0 0.4
HD2350 ACT-H01XX
/HNA-H23XX 1.52～9.18 0.15～0.9 1.33～7.97 √ 1200
1.4～3.0 1.4～2.6 0.5
HD2351 ACT-H01XX
/HNA-H23XX 1.52～9.18 0.15～0.9 1.33～7.97 √ 1200
1.4～3.0 1.4～2.6 0.5
HD2460 ACT-H02XX
/HNA-H24XX 2.0～12.23 0.2～1.2 1.77～10.62 √ 1000
1.4～4.0 1.4～3.0 0.5
HD2461 ACT-H02XX
/HNA-H24XX 2.0～12.23 0.2～1.2 1.77～10.62 √ 1000
1.4～4.0 1.4～3.0 0.5
HD2571 ACT-H03XX
/HNA-H25XX 5.1～16.32 0.5～1.6 4.42～14.16 √ 800
2.0～5.0 2.0～4.2 0.6

Dimensions
​HD2120 Low Noise Smart Electric Screwdriver DC 40W 5000Rpm Max Speed 0

Click to Enlarge
