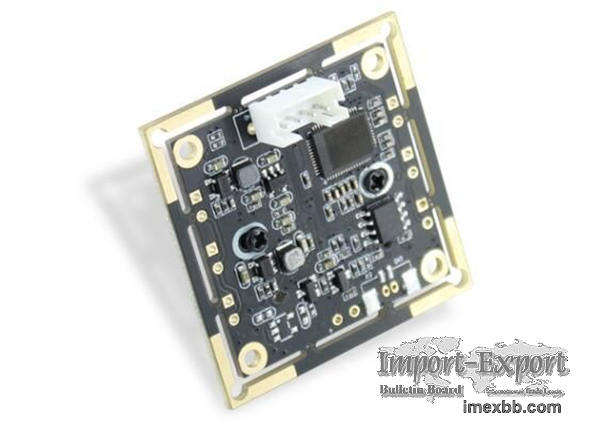

HBVCAM Sony IMX317 8M Pixle HD 4K CMOS Camera Module

The HBVCAM Sony IMX317 8M Pixel 4k Usb Camera Module is a cutting-edge
imaging solution designed to meet the demanding requirements of high-resolution
video capture and image processing applications. This module offers
unparalleled image quality, advanced features, and convenient connectivity
options, making it an ideal choice for a wide range of industries.
HBVCAM Sony IMX317 8M Pixel HD 4K CMOS Camera Module
*Full HD 4K  USB Camera Module with Microphone
*High Speed 4K HD USB Camera *3.6mm lens
*1/2.5" SONY IMX317 sensor for a high-quality sharp image.
*High speed USB 2.0 interface for high-resolution PC camera interface.
*Super small outline and a thin profile for embedded applications
*High quality lens, true and undistorted color image.
*Low power consumption – ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC
Request a quote now!
4k Usb Camera Module Specification
Module No. HBVCAM-4K1928 V55
Module Size 38mm × 38mm × 24.5mm±0.5MM
Temperature (Operation) -30°C to 70°C
Temperature (Stable Image) 0°C to 50°C
Assembly technique SMT (ROSH)
Focus Fixed
Object distance 30CM-infinity
Resolution 800LW/PH (Center)
PCB printing ink black
interface USB 2.0
Power suuply USB bus power
supply voltage DC 5V±5%
Maximum Power consumption 940mW
Operating system request Win XP/win 7、8 / vista /android 4.0/ mac
/Linux with uvc
