Hazardous Area Flameproof Fluorescent Light Fittings ATEX 40w Linear Lamps

Hazardous Area ATEX 40w Linear Lamps Explosion Proof LED Lighting



Features:

1. The radiator is designed to be made of special cast aluminum alloy by
die-casting, and its surface is sprayed with high voltage static
electricity;
2. Exposed stainless steel fasteners with high corrosion resistance;
3. Separate structure of light source cavity and power supply cavity;
4. Specially designed light distribution system, with high light utilization
rate, reasonable light distribution, uniform illumination and no glare;
5. The junction box is of labyrinth structure, equipped with silicone rubber
sealing strip, firmly pasted, and of high protection grade;
6. Toughened glass made of high-strength material, with strong impact
resistance, thermal shock resistance and high light transmittance;


Specification:



Explosion protection
Ex Mark II 2G Ex d e IIC T6 / II 2D Ex td T80℃
For use in Zone 1, 2 & Zone 21, 22
Electrical data
Rated voltage 100-240VAC, 50-60Hz
Power factor ＞0.95
THD ＜20%
Luminous characteristics
Power consumption [W] 20-40 40*60 60-80
Colour rendering [CRI] 70±2
Colour temperature [K] 6000~6500
Luminaire efficiency [Lm/W] 115~130
Beam angle 120°
Mechanical data
Degree of protection IP66
Cable entry G 3/4”
Weight [kg] 4.5 6.5 8
Terminal ≤2.5 mm²
Mounting Styles Ceiling; Wall Bracket; Pendant


Application:


A wide range of hazardous areas where ignitable vapors, dust, moisture and
corrosive elements are present

Areas requiring frequent on-and-off of lights or power cycling- no warm up
time required

Areas with high energy costs

Typical applications include:
Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation




Company introduction:

Changzhou JUJUN Ex-proof company is a professional LED lighting manufacturer
and it founded in 2011, Specialized in explosion proof led lights, strobe
and sounder light, plug and sockets, switches, push buttons, exhuast fan,
axial flow fan and so on.
There are 30,00 square meters of factory buildings. With over 10 years of
lighting experience, profound industry knowledge in the field of the
explosion proof light, appliances etc.


FAQ:

Q1. Can I have a sample order for explosion proof led light ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are
acceptable.

Q2. What about the lead time of explosion proof led light?
A:Sample needs 5-7 days, mass production time needs 1-2 weeks for order
quantity more than

Q3. Do you have any MOQ limit for explosion proof led light?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 7-10 days to
arrive. Airline and sea shipping also optional.

Q5: Do you offer guarantee for explosion proof led light?
A: Yes, we offer 3-5 years warranty to our products.

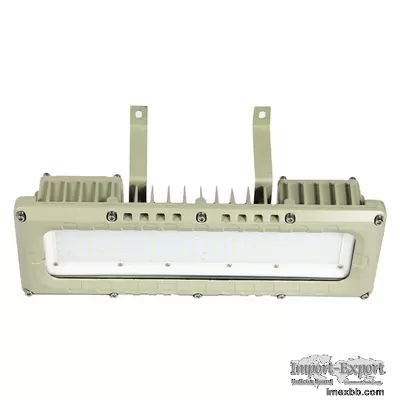

Products details:

Hazardous Area Flameproof Fluorescent Light Fittings ATEX 40w Linear Lamps
0Hazardous Area Flameproof Fluorescent Light Fittings ATEX 40w Linear Lamps
1

Click to Enlarge
