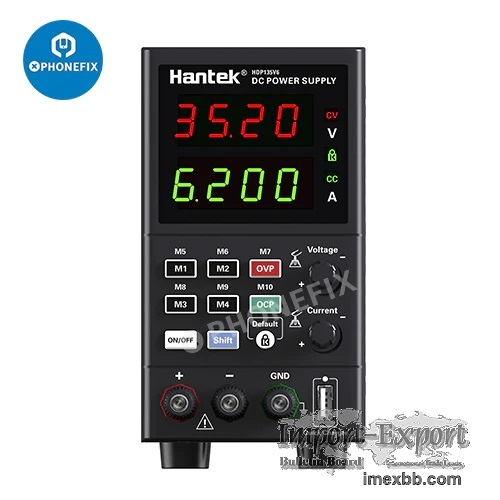

Hantek HDP135V6 Series Regulator Switching Adjustable DC Power Supply

Hantek 35V HDP135V6 Series Adjustable DC Power Supply Digital LED Lab Bench
Voltage Regulator Stabilizer Switching Power Supply for Phone Repair.

HDP135V6 HDP135V6S HDP135V6A HDP135V6B:

Four-digit display voltage and current, resolution up to 10mV/1mA.
Standard USB quick charge function, supports a variety of quick charge
protocols.
Storage functions for up to 10 groups; AC input voltage 230/115V switch,
universal.
Fully isolated serial port, software supports multiple power supply control,
easy to set up measurement and control or aging system.
Over voltage, over current, overload, overheating, short circuit protection
functions.
Low noise temperature control fan, quiet and durable: 35V/6A output is
stable and pure.
On/Off output control, one-button panel lock function to prevent
disoperation.
It is an ideal power supply for laboratory, production line and home
appliance maintenance.


Features:

Small size, high power, full protection

Ultra-thin body, abundant power, stable performance.
Over voltage, over current, overload, overheating, short circuit protection
functions.
Constant voltage (CV)/ constant current (CC) automatic switch.
It can be used as a constant voltage source or constant current source.


Support computer control, multi-machine linkage

Fully isolated serial port, software supports multiple power supply control
at the same time.
Easy to set up measurement and control or aging system.
10 groups of data storage/retrieval functions.


Intelligent cooling system

It has a low noise temperature control fan, quiet and durable.
Reasonable cooling air duct design, all-weather full load work without
burning machine, more lasting work. 230V/115V switchable input, universal.


Low ripple, low noise

10mVrms Low ripple low noise.
10mV/1mA reading resolution, high voltage/current output accuracy.


USB quick charging function

Automatic recognition of fast charging protocol and adjustment of output
voltage and current.
5V/ 3.4A, 9V/2.0A, 12V/1.5A can provide a maximum of 18 W output power.
DCP (Apple, Samsung and BC1.2), Qualcomm QC2.0/QC3.0, Huawei Quick Charge
Protocol FCP, Samsung Quick Charge Protocol AFC.

Specification:

Load Regulation: ≤0.1%+5mV
Line Regulation: ≤0.01%+5mV
Set Resolution: 10mV
Set Accuracy: ≤0.1%+1 digits
Readback Resolution: 10mV
Readback Accuracy: ≤0.1%+1 digits
Ripple: 10mVrms
Load Regulation: ≤0.2%+3mA
Line Regulation: ≤0.2%+3mA
Set Resolution: 1mA
Set Accuracy: ≤0.2%+3mA
Readback: 1mA
Resolution Readback Accuracy: ≤0.2%+3 digits
Ripple: 5mArms
OVP: 0~35.2V ±0.2%FS
Maximum Voltage: 35.2V ±0.2%
OCP: 0~6.2A ±0.2%FS
Maximum Current: 6.2A ±0.2%
Output Voltage Range: 5V~12V
Output Power: Maximum:18W
Supported Quick Charging Protocol: Compatible with DCP, QC2.0/QC3.0, FCP,
AFC
Cooling: Air cooling
Working Temperature: -10~40℃; Humidity: ≤80% RH
Storage Temperature: -20~60℃; Humidity: ≤80% RH
Item Size: 85*150*232mm
Item Weight: 1594g
Package Size: 28.5*21.5*14cm
Package Weight: 2050g

Package includes:

1 x Power Supply
2 x Test Lines with Alligator Clip
1 x Power Cord

Minimum Order: 1 pieces
