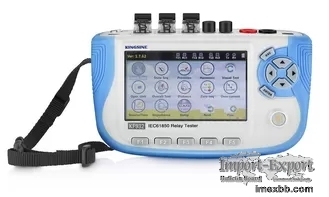

Handheld Digital Protection Relay Testing KF932 IEC61850 Relay Test Set

Handheld Digital Protection Relay Testing KF932 IEC61850 Relay Test Set



Description of KF932 IEC61850 Relay Test Set

Applied to digital protection relay, Measure & control device, IEC61850
Complying IEDs ,Merge Unit and substation control system testing and
detection;
Touch screen and keypad, to meet different using habits.
4400mAh large capacity lithium battery, continuous work for more than 10
hours.
Small size, easy to portable.



Feature Of KF932 IEC61850 Relay Test Set

based on the intelligent substation related standards to analyze the SV,
GOOSE, IRIG-B and IEEE1588 message, calculate the magnitude, phase and
frequency of voltage and current, and real-time monitor of GOOSE virtual
terminal.

● Receiving closed-loop testing of smart devices via SV, GOOSE message
sending, subscription and publication of GOOSE messages;

● Phase detection function is achieved by analyzing and calculating
different control blocks; Binary input and output of the hard contact can be
completed on the intelligent operation box transmission delay and SOE on the
accuracy of the measurement;

● SV and GOOSE exception statistics analysis and synchronization function
to achieve the integration of the unit discrete, lost frame and absolute
delay measurement.

● With small size, touch screen operation of the convenience and powerful
measurement and analysis and testing capabilities, greatly to meet the
intelligent substation operation, maintenance and debugging of the
protection, monitoring and control devices, IEC61850 complying IEDs, the
merger unit and the station control system Detection and commissioning
requirements.
