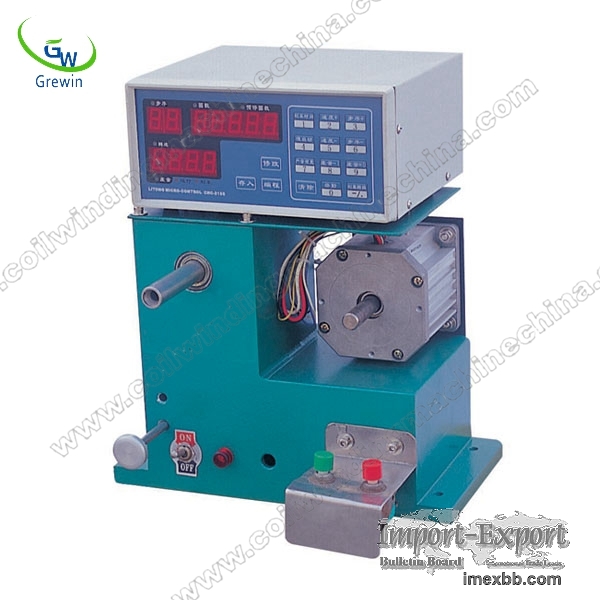

GW-9740 Manual Winding Machine

SPECIFICATION:
Spindles:1
Max Speed:3000rpm
Wire diameter:0.03-0.5mm
Memory:99 Sequences
Main Motor:Swing Motor
Power Source:AC 220V/110V±10%,50/60MHZ

FEATURES:
Manual Winding Machine has microprocessor design ,easy for program-setting
handing.
Manual Winding Machine sets winding direction ,brake time for each step
independently
More convenience by using foot-switch.
Manual Winding Machine is easy to use VR-switch to adjust the speed of
winding.
Wire tensioner with magnetic braking provides constant wire tension.

ADVANTAGES:
CE certification.
A short period of delivery：10 days after receipt of payment.
Free replacement of mainframe accessories.
The technicians are experienced for up 5 years.

APPLICATION:
Typical applications for Manual Winding Machine with a single wire size,
include the manufacture of gas ignition coils, solenoids, relays, motors
and many forms of sensor coil in small and medium batch quantities.It is
ideal for use in the production of small inductors, particularly bobbins
wound with a single wire size and high turns count. The high maximum
winding spindle speed (up to 6000 rpm) enables coils with a high turns
count to be wound in a short cycle time.

PRACTICAL APPLICATION :
TRAINNING CUSTOMER TO OPERATE WINDING MA , CHNE :
1.All service engineers with 10 ye , ars experience are gotten special technol
, ogy training, who can deal with various bre , akdown problem.
2.Guide the user to use a , ccurately and how to maintain the Manual Winding
Machine .
Provide free consultation about productio , n process technology of electronic
 High Speed Winding Machine .
3.In order to guarantee the machine use , d normally, we'd have training on ho
, w to operate, use and maintain our product

Minimum Order: 1 pieces
