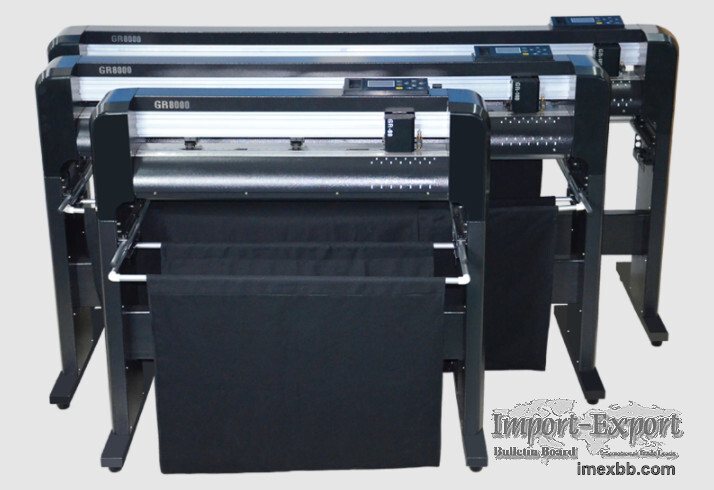

Gunner GR8000 Series Vinyl Cutter

CNC Vinyl Cutter Machine Vinyl Cutter China

As the meticulous works by Gunner, GR8000 Series adequately embodies the high
performance cutting plotter in every aspects, such as superior stability, high
precision, high cutting/ plotting speed, extra long distance linear tracking
ability, big cutting force, super simple operation, just name a few.

GR8000 ensures the high rate of return of customers in Automotive Aftermarket,
Wide Format Signage, Heat Transfer Apparel, Custom Decals and Stickers, Road&
Traffic Reflective Signage and more.

GR8000 Series performs quality cutting in those thin, thick, rigid materials
like Paint Protection Film/PPF, Window Tint, High Intensity Prismatic
Reflective Sheeting, Magnets, Sandblast Rubber Stencil and common vinyl
stickers.

Parameters of GUNNER CNC Vinyl Cutter Machine
Model GR8000-80 GR8000-140 GR8000-180
Max.Cutting Width 690mm (Non-contour Cutting） 1290mm (Non-contour
Cutting） 1630mm (Non-contour Cutting）
600mm (Contour Cutting） 1220mm (Contour Cutting） 1520mm
(Contour Cutting）
Max.Mountable Media Width 840mm 1440mm 1780mm
Min.Mountable Media Width 70mm
Applicable Media Thickness ≤1.5mm
Max.Cutting Speed 800mm/s
Max.Cutting Force 600G / 5.8N in 8 Steps
Cutting Force Setup Adjustable in Every 1G
Drive Servo
Mechanical Resolution 0.0125mm
Min.Character Size 3 x 3mm
IOS Win10 / 8 / 7 / XP
Memory Buffer 2MB
Software Windows Driver, SignWorkPro, CADtoPlotpro
LCD English / Chinese
File Format HP-GL, PLT
Port in Standard USB, RS-232
Registration Marks Sensing Red Laser Sensor
CCD Camera For option
Power Input AC90- 240V，50-60Hz
Power Consumption 60w
Cutter Holder/Pen Holder 1 for each
Cutter Blade Diameters 2.0mm
Cutter Blade Angles 30°, 45°, 60°
Types of Pen Water based fiber-tip pen & Oil based ball pen
Method to Fix Material Push rollers
Media Stock Roller Plates Included
Basket For option
Package Size L-W-H 1180x400x570mm 1710x400x570mm 2200x400x570mm
Gross / Net Weight 42/27kg 96/62kg 105/72kg

Gunner’s most cost effective digital cutter and related controllers are widely
used in any industry for any material. With Perennial years export experiences,
our PPF, Window Tint, Printing and Cutting, Reflective Sheeting has been
welcomed in international markets. If you are considering a more economic and
faster digital solution, please click here to browse our website.

Minimum Order: 1 sets
