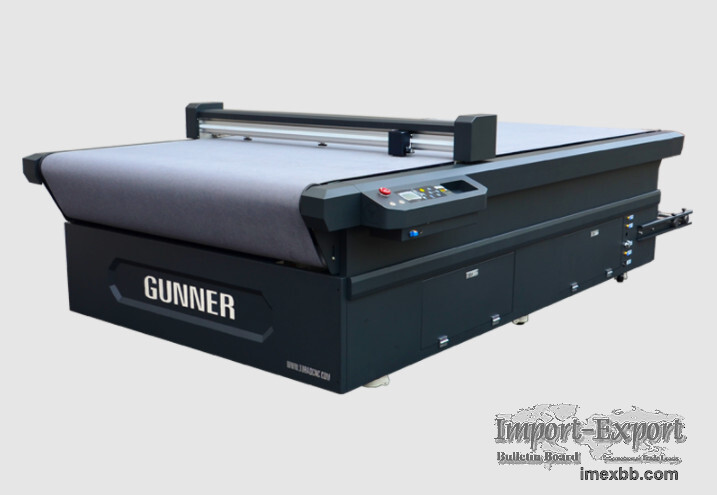

Gunner F Series Auto Fed Flatbed Digital Cutter

Advertising Signs Flatbed Cutter Traffic Safety Sign Cutting Plotter

Gunner F Series- GR1312F/ 1612F/ 1325F, a faster, more accurate, more
economical digital cutter designed for industries as Road& Traffic Safety
Signs, Automotive Aftermarket, Heat Transfer Apparel(DTF), Print Cut, Die
Cutting and other signage graphics.

F Series is typically applied to cut both printed and unprinted medias with
thickness ≤1.5mm, such as Reflective Sheeting, Paint Protection Film/PPF,
Window Tint, PPE, PET, PVC, PU, Paper and other vinyl stickers with
incomparable high efficiency.

F Series of auto fed flatbed digital cutter is capable of cutting materials in
roll and sheet/piece with outstanding high quality, series of cutting methods
including perforation cutting, half cutting, creasing and marking benefit
clients greatly with more output and less cost of labor.


Parameters of High End Digital Cutter
Model GR1312F GR1612F GR1325F
Working Size on X Axis 1300mm (Non-contour Cutting) 1520mm (Non-contour
Cutting) 1300mm (Non-contour Cutting)
1240mm (Contour Cutting) 1490mm (Contour Cutting) 1240mm
(Contour Cutting)
Working Size on Y Axis Sheet Material: 1200mm Sheet Material: 1200mm Sheet
Material: 2500mm
Roll Material: Whole Roll Roll Material: Whole Roll Roll
Material: Whole Roll
Max.Media Width Applicable 1469mm 1689mm 1469mm
Applicable Media Thickness ≤1.5mm
Applicable Media Reflective Sheeting, PPF, Window Tint, PPE, PET, PVC,
Vinyl Stick
Method to Feed Media Conveyor & Roll Media Bracket
Method to Fix Media Vacuum Table
Max. Cutting Speed 600mm / s
Max. Cutting Force 600G / 5.8N in 8 Steps
Cutting Force Setup Adjustable in Every 1G
Cutter Blade Diameters Φ2.0mm
Cutter Blade Angles 30°, 45°, 60°
Dotted Lines Cutting Included
Drive AC Servo
Mechanical Resolution 0.0125mm
IOS Win10 / 8 / 7 / XP
Memory Buffer 2MB
CAD/CAM Software Windows Driver, SignWorkPro, CADtoPlotpro
LCD English / Chinese
File Format HP-GL, PLT
Port in Standard USB, RS-232
Registration Marks Recognition CCD Camera
Power Input AC 110- 220V，50-60Hz
Power Consumption 3.2kw 3.2kw 3.2kw
Cutter Holder 1
Bar-code for Data Link For option
Roll Media Bracket Included
Floor Plan W-L-H 1900 x 2150 x 1010mm 2100 x 2150 x 1010mm 1900 x
3400 x 1010mm
Package Size W-L-H 1920 x 1850 x 1220mm 2150 x 1920 x 1220mm 3120 x
2150 x 1220mm
Gross / Net Weight 320 / 240kg 340 / 260kg 850 / 620kg

Gunner Shanghai Automation, LTD is a professional digital cutter manufacturer
with more than 20 years experience. Specialized in the design and production of
Auto Fed Flatbed Digital Cutter, Vinyl Cutter and Cutting Plotter, we commit to
offer you a more economic and faster cutting solution!

Minimum Order: 1 sets
