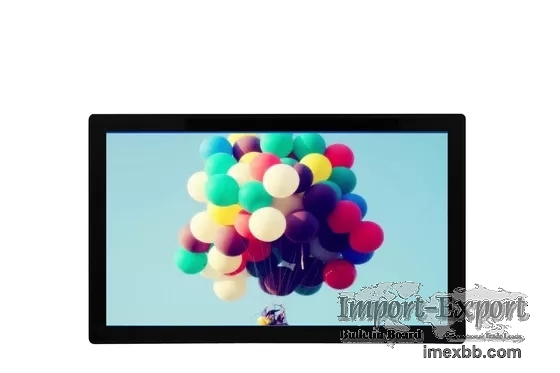

GTG Interactive LCD Touch Screen Monitors IPS Multitouch HDMI Display

PRODUCT DESCRIPTION



GTG Interactive LCD Touch Screen Monitors IPS Multitouch HDMI Display



LY-A32 Monitor HD display color realistic, excellent workmanship, quality
assurance, simple wireless space saving, ergonomic design is stable and
reliable, intelligent touch operation is smooth writing, touch software, widely
used.



SPECIFICATION

Backlight technology:Led

Luminance:≥250 cd/m2

Contrast ratio:Horizontal: 178 / Vertical: 178

Response time:25ms(GTG)

Display color:16.7M Colors

Display resolution:1920x1080 (16:9)

Frequency of refresh:60Hz

Junctor:VGA / DVI / HDMI



Interlinkage:USB2.0(Type B socket)

Multitouch control protocol support:Windows

Dimension:780.2 x 474.8 x 54.5 mm

Opening size:772 x 467 mm



Power input:DC in: DC 12V3A (50/60 Hz)

Power:≤ 25W (typ.)

Standby power:≤ 2W (typ.)

Work environment:0 °C ~ 50 °C, 90% RH

Storage environment:-20 °C ~ 60 °C, 90% RH



Product Performance:

LCD face-plate

Backlight technology Led
Luminance ≥250 cd/m2
Contrast ratio 3000:1
Visual Angle Horizontal: 178 / Vertical: 178
Response time 25ms(GTG)
Display color 16.7M Colors
Display resolution 1920x1080 (16:9)
Frequency of refresh 60Hz
Input resolution 1920x1080 @ 60Hz
Junctor VGA / DVI / HDMI
OSD function

OSD control button
OSD language English, Chinese
Touch screen parameters

Glass 3mm black screen screen tempered glass
Touch point number 10
Touch technology Projective capacitor (G + G)
The pen type Fingers, hands with gloves, and a conductive stylus
Waterproof performance Touch surface is not affected by water droplets or
water vapor
Calibration No calibration tool
Response time 7ms-12ms
Interlinkage USB2.0(Type B socket)
Multitouch control protocol support Windows
Operating system Win 7/8,Android,Linux
Mechanical parameters

Dimension
780.2 x 474.8 x 54.5 mm

Packing measurement
820 x 570 x 150 mm

Weight (approx) 8 kg / 10 kg
Wall hanging form VESA,MIS-E,C
Electrical parameters

Power input DC in: DC 12V3A (50/60 Hz)
Power ≤ 25W (typ.)
Standby power ≤ 2W (typ.)
Built-in speakers N
Enviromental parameter

Work environment 0 °C ~ 50 °C, 90% RH
Storage environment -20 °C ~ 60 °C, 90% RH
Fitting

Other Bracket / power cord / VGA cord / USB cord / power adapter
