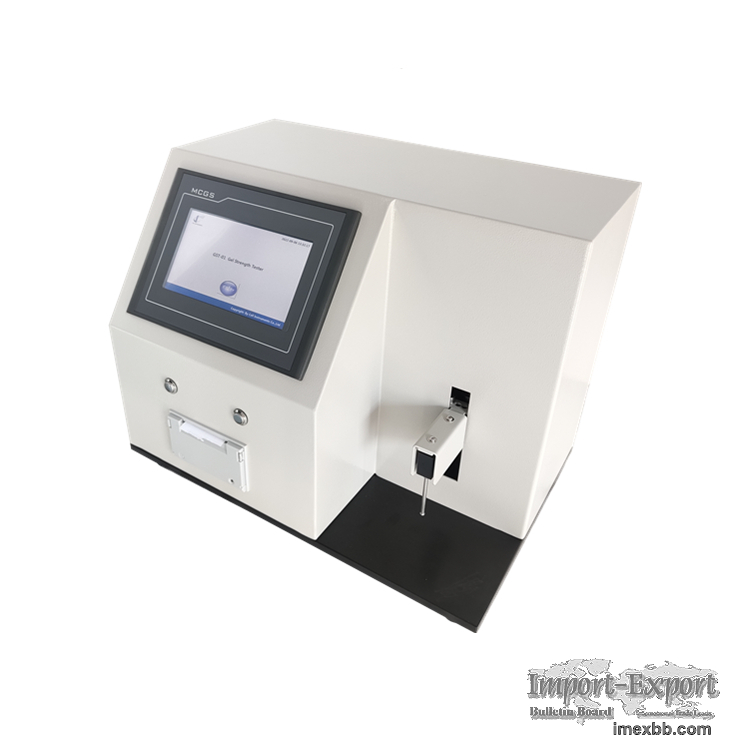

GST-01 Gel Strength Tester

Significance: Gel strength is an important quality parameter in various
industries, especially in the food industry. For example, in the surimi
industry, gel strength is a key factor in determining the texture and quality
of surimi-based products like imitation crab meat. It affects the product's
mouthfeel, firmness, and overall sensory attributes.
Quality Control: Gel strength testing is often used as part of quality control
processes to ensure that products meet desired texture and consistency
standards. It helps manufacturers maintain product consistency and meet
consumer expectations.
Product Development: The test also plays a role in product development,
allowing researchers to fine-tune formulations and processing methods to
achieve specific gel characteristics.
In summary, the gel strength test is a valuable tool in assessing the texture
and quality of gels, particularly in industries like surimi, where the
consistency of gel-based products is crucial for consumer satisfaction.

Technical Features
1. It's a PLC controlled unit (industrial level stable) and HMI touch screen
operated. Precision ball lead screw mechanism ensures good and steady speed and
displacement control. Its specially designed program can be used for different
parameters concerning gel strength test.

1. 7 inch HMI touch screen
2. PLC control unit inside
3. Precision ball lead screw
4. Adjustable test speed
5. Multiple fixtures available for other texture analysis
6. Safety is our concern
Travel limit protection; automatic returning; loadcell protection cover
7. Multiple test items of WEIGHT, PEAK, DISTANCE, are available.
8. Dot matrix type microprinter equipped
9. RS 232 port and professional software(optional)
2.
1. PLC-controlled unit for industrial-level stability with HMI touch
screen operation.
2. Features a 7-inch HMI touch screen for user-friendly operation.
3. Utilizes a precision ball lead screw mechanism for precise speed and
displacement control.
4. Specially designed program for flexibility in conducting gel strength
tests.
5. Offers multiple fixtures for conducting various texture analyses.
6. Prioritizes safety with features like travel limit protection,
automatic returning, and load cell protection cover.
7. Provides multiple test items, including weight, peak, and distance
measurements.
8. Includes a dot matrix type microprinter.
9. RS 232 port and professional software for advanced data management.
（Optional）

Test Items
WEIGHT: To measure distance at a certain load
PEAK: To measure gel strength
DISTANCE: To measure load at a certain distance
Main Parameters
Test Range: 0-50N (or as required)
Stroke: 110mm (without probe)
Test Speed: 1~100mm/min
Displacement Accuracy: 0.01mm
Accuracy: 0.5% F.S.
Control: PLC and human machine interface
Output: Screen, Microprinter, RS232(optional)
Power: 110~220V, 50/60 Hz

Minimum Order: 1 sets
