Gravity Filling Machine

Product Description

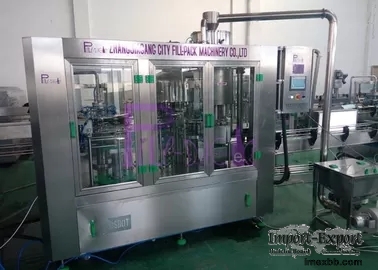

High Speed Drinking Water Filling Machine Gravity Model





Quick Detail:



Character: High speed

Comparation: Normal CGF18-18-6, Speed: 7000-10000BPH;

Innovative HCGF18-18-6, Speed: 10000-15000BPH

Filling Temperature: ambient temperature
Filling Principle: Gravity Filling
Filling Product: mineral water, purified water, flavor water and low alcoholic
drinks.

Bottle used: PET bottle

Speciality: More fixing points, lower gravity center





Description:



1. High Speed Drinking Water Filling Machine is our new innovation which our
engineer developed on normal machine with absorbing oversea advanced
technology.

2. It integrates bottle washing washing machine, negative pressure filling
machine and bottle capping machine. It has compact structure so as to save the
space.

3. The water filling machine is driven by single motor. It is with cardan joint
and frequency control of motor speed, it can make sure each part of the
equipment operate synchronously.

4. It is easy to operate, running steadily, the high level of automaticity. It
could be set and stopped automatically if one bottle was blocked in order to
protect the equipment from damaging.

5.The whole technical process is short and sealed completely, in order to make
sure the products are not polluted.

6. With using this high speed drinking water filling machine, same model,
higher speed, less space ans less cost, so it is ideal choice.





Specifications:



Model CGF18-18-6 CGF24-24-8 CGF32-32-10
Washing Head No 18 24 32
Filling Head No 18 24 32
Capping Head No 6 8 10
Rated

Capacity

(500ml)

, 8000-12000BPH 12000-15000BPH 15000-20000BPH
Overall Size
2450*1900*

2300mm

2750*1180*
,
2400mm

4000*2300*

2300mm

, Weight 3.5T 4.5T 8.5T
Power

(KW)

4.0kw 4.8kw 7.6kw
Rated Voltage Customized Customized Customized



Competitive Advantage:



1. One year warranty for the whole system

2. Free equipment installation and debugging

3. After one year, we can help you to maintain the machine and the accessories
are provided only one the cost price

4. Every 3 years, we can help to overhaul the machine free (Labor)

5. We can provide internship service and help you train the operator and
mechanic

6. Free production technology and process configuration

7. We can help you to design the production line, workshop and provide turn-key
project
