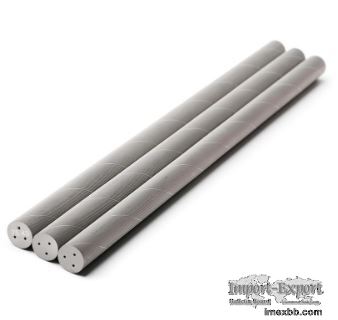

Graphite Helical Coolant Hole Rod K10 Tungsten Carbide Composite Rods

Graphite and composites material milling tools blank carbide rods with helical
coolant holes



ISO K10

Cobalt: 6.0%

Outer diameter: 9.3mm

Inner diameter: 1.40 +/-0.15

TK: 4.5mm

Pitch: 48.97mm

Length: 330mm +3mm

Surface roughness: Raw sintered Ra 6.3 or as required



Application: High hardness grades for processing aluminum alloys, graphite, and
composites. Suitable for milling, reaming, and diamond coatings



Grade datasheet:



Binder Hardness T.R.S Density Grain size ISO
HRA HV10
6.5% 93.4 1840 2800 14.85 Ultra fine k10
Graphite Helical Coolant Hole Rod K10 Tungsten Carbide Composite Rods
