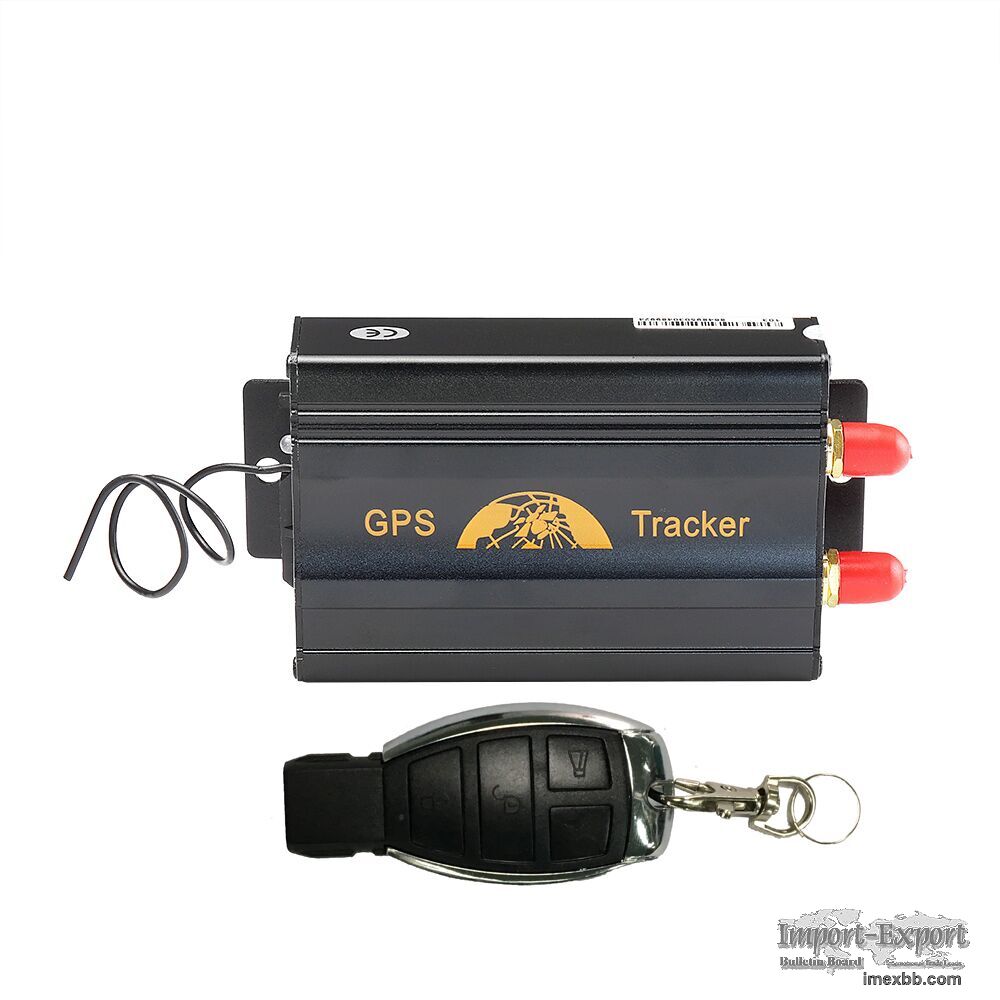

gps gsm car alarm system 3g gps tracker tk103 with free gps tracking system

Model: GPS tracker TK-103A B,TK103A+ B+


It is based on GSM/GPRS(850/900/1800/1900MHZ) and GPS satillite global
position system .



1. Summary

This tracker is a new product based on the GSM / GPRS network and GPS
satellite positioning system, which set multiple functions of security,
positioning, monitoring surveillance, emergency alarms and tracking in its
entirety. It can track and monitor remote target by SMS or internet.



2. Features

Support both GPS & LBS (Location based service).

Support GPRS on-line and GPRS re-connected automatically if GPRS drops

Support SMS / GPRS dual-mode switching

Support configuration by remote terminal.

Support for point-to-point, point to group, group-to-group monitoring.

Set multiple functions of anti-theft, positioning, monitoring surveillance,
emergency alarms and management in its entirety.

Vehicle fleet/logistics/Vehicle rental GPS tracker support GSM/GPRS network on
APP/web platform tracking

New functions:

TK103A+ B+ support dual Sim Card, fuel sensor,central lock system



3. Main Function Description

1. Show location directly on mobile phone with HTTP Google map link

2. Get physical location in real street/address name

3. Remote Engine-stop and Resume.

4. Track by Distance Interval &time

5. USB configuration (option)

6. SD card for data logging (option)

7. ACC working alarm

8. Voice surveillance

9. Multi-Geo fence

10. Less GPRS traffic

11 .automatic update positions of vehicle turns

12. Arm alarm: Door Alarm, ACC Alarm, shock sensor alarm

13. Movement alert.

14. over speed alarm

15. Power supply disconnection alarm.

16. Low battery alarm function

17. Check the vehicle status

18. Easy switch for track or monitor and switch for SMS tracking and GPRS
tracking
Specifications:



Content

specifications

DIM.& , lt; , br>
83*54*26mm

Weight

120g
,
Network

GSM/GPRS

Band

850 , /90 , 0/1800/1900Mhz

GPS Sensitivity

-159dBm

GPS Accuracy

5m

GPS Start time

Cold status 45s

Warm status 35s

Hot status 1s

Voltage

12 V -24V



Backup battery

Chargeable 3.7V500mAh Polymer Li-Battery

Storage Temp.

-40°C to +85°C

Operation Temp.

-20°C to +65°C

Humidity

5%--95% non-condensing



Technology parameter:

*Network: GSM/GPRS

*Band: 850/900/1800/1900Mhz

*GPS sensitivity: -159dBm

*GPS accuracy: 5m

*Time To First Fix:Cold status 45s, Hot status 1s



How to tracking ?



The GPS devices support phone tracking and 16 languages website tracking.
(English,Spanish,Portuguese,Arabic,Thai
language,Italian,German,Chinese,French...)
,


Five types Tracking way:

A>: SMS + Map software;

B>: PDA Cell Phone;

C>: Real time tracking, and track via your computer;

D>: simple & useful real time tracking via our website www.baanool.net

E >: IOS and Android APP

Minimum Order: 10 pieces
