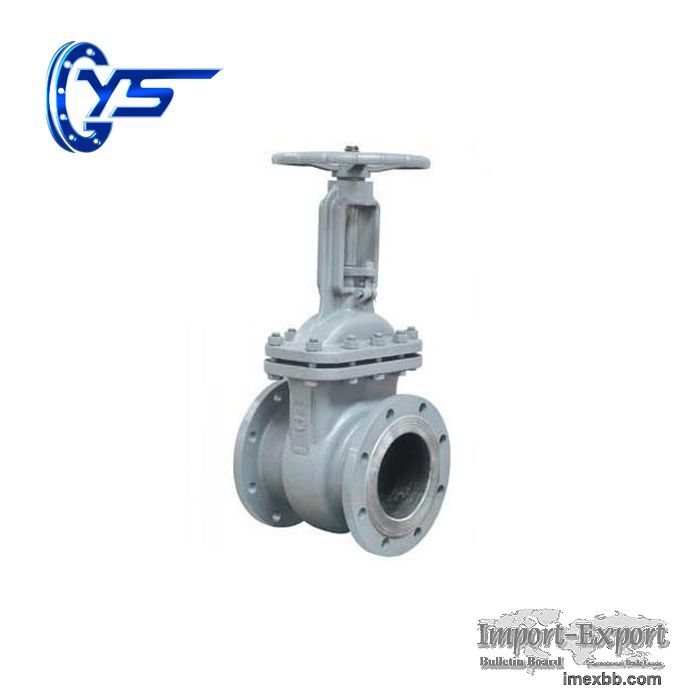

Gost Heavy Type Steel Gate Valve gate valve manufacturer
Gost Heavy Type Steel Gate Valve gate valve manufacturer GOST SERIES Material: WCB Medium temperature: -29-425 ° C Mode of operation: Manual / electric / pneumatic Medium: water, steam, oil, etc. Caliber: DN40-1200 Valve type: gate valve Connection method: flange Body material: carbon steel/WCB Working pressure: 1.6Mpa Rising Stem Knife Gate Valve Details Gost Heavy Type Steel Gate Valve Z41H-16C Main parts and materials Parts name Material Valve body Bonnet WCB Disc WCB Stem 2cr13 Yoke nut Brass Gost Heavy Type Steel Gate Valve Z41H-16C Function and specification Type Nominal pressure Testing pressure Suitable temperature Suitable medium Strength (Water) Enclose (Water) Z41H-16C 1.6 2.4 1.76 —29—425℃ Water,Vapour,Oil
Gost Heavy Type Steel Gate Valve Z41H-16C Outline and connecting measurement Type Nominal DN(mm) Measurement(mm) L D D1 D2 b-f z-φd H Z41H-16C 50 180 160 125 100 16-2 4*φ18 285 80 210 195 160 133 18-2 4*φ18 329 100 230 215 180 158 20-2 8*φ18 390 125 255 245 210 185 22-3 8*φ18 451 150 280 280 240 212 24-3 8*φ22 513 200 330 335 295 268 26-3 12*φ22 636 250 450 405 355 320 27-3 12*φ26 739 300 500 460 410 370 27-3 12*φ26 854 Tips:
Compact structure, reasonable design, good valve rigidity, smooth passage.
2.The use of flexible graphite packing, reliable sealing, light and flexible operation
Applications: Industrial appl , ications: Petroleum, Chemical, Paper Making, , Fertilizer, C oal Mining,water treatment an , d etc.
3 way gate valve Advantages:
We have Sand or Precision casting technology,So we can as your drawing design and production.
Customers' logos are available cast on the valve body.
3. All our casting with tempering procedure before Processing. 4. Use the CNC lathe during whole process. 5. The disc sealing surface use plasma welding machine welding. 6. Every valve must be tested before delivery from the factory, only qualified ones can be shipped. 7.The kind valve we usually use Pallets to package, We also can according to specific customer's requests.
Company Advantages: 1.We are manufacturer Since 1992. 2.CE,API,ISO approved. 3.Fast delivery. 4.Low price with high quality. 5.Professional work Team!
With many years’ export experiences, our DIN Gate Valve and two-piece ball valve have been welcomed in international markets. Click here to learn more about valves. https://www.hbysindustry.com/
Minimum Order: 1 pieces
