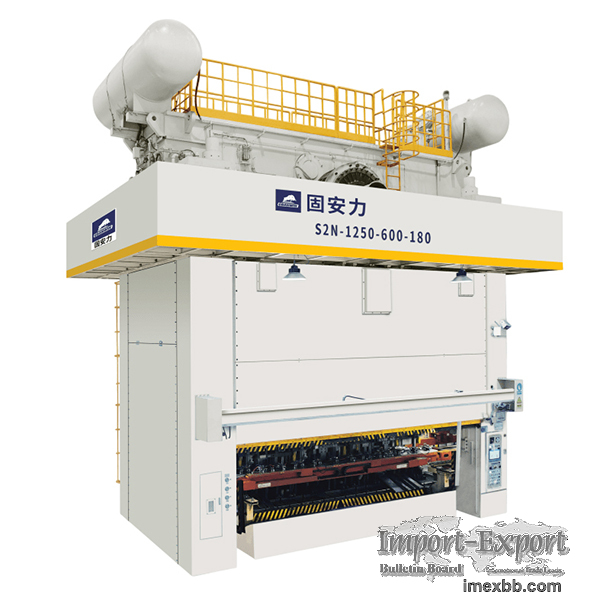

GOANWIN S2N Straight-Side Eccentric Press for Automotive Heavy-Duty Parts

Applications
Front and rear door built-in frames, rear compartment frames, front
fenders, rear wheel cover outer panel assemblies, upper side beam inner
panels, rear side lower inner panel sealing plates, top cover center
reinforcement plates, car rims, pressure cookers, steel bottles.

Description
The GOANWIN S2N Series Closed Double-Point Eccentric Gear Press is an
industry-leading solution designed for high-strength, precision stamping
applications. With its steel-plate welded structure and split-closed
design, the press delivers exceptional rigidity, stability, and operational
efficiency.
This machine is equipped with an innovative eccentric gear structure,
offering a large slide stroke and enhanced anti-eccentric load capacity to
handle demanding production tasks. Featuring a dry pneumatic friction
clutch, hydraulic overload protection, and automatic oil circulation
lubrication system, the S2N ensures superior performance, safety, and
longevity.
The S2N series is ideal for manufacturing automotive parts, such as door
frames, fenders, and panels, as well as pressure cookers, steel bottles,
and other industrial components.

Features
1.High-Strength Structure
· Beam-column-base split closed design, welded from high-strength steel
plates and reinforced with four tension bolts for superior rigidity and
stability.
· Designed to handle heavy loads and prevent deformation under high-
pressure operations.

2.Innovative Eccentric Gear Design
Features a large slider stroke to meet diverse stamping requirements.
Wide distance between the two connecting rods enhances anti-eccentric load
capacity and expands the working area.

3.Precision & Accuracy
Equipped with four-corner, eight-sided long guide rails for precise and
stable slider movement.
Motorized slide adjustment with a digital die height indicator (precision:
0.1mm).

4.Advanced Safety Systems
Dry pneumatic friction clutch provides low noise, high torque, and small
braking angles for safe and efficient operation.
Hydraulic overload protection ensures emergency stops during overload,
safeguarding the press and molds.


5.Efficient Lubrication System
Automatic oil circulation lubrication system with an oil circuit alarm to
ensure smooth operation and prevent overheating.


6.Smart PLC Control
Centralized PLC electrical control system with multifunctional safety
features, including emergency stops, inching, single, and continuous
operations.
Double-valve clutch control ensures synchronized movement for reliable
performance.

Specifications
- Tonnage Capacity: 400–1600 tons.
- Structure: Steel-plate welded, split closed design.
- Slide Design: Eccentric gear with a large stroke
- Guiding System: Four-corner, eight-sided long rectangular guides.
- Safety Features: Hydraulic overload protection, pneumatic friction
clutch-brake.
- Die Height Adjustment: Motorized with digital precision (0.1mm).
- Lubrication System: Automatic thin-oil circulation system with over-
temperature alarm.
- Control System: PLC controller with centralized electrical box.
- Operation Modes: Emergency stop, inching, single, and continuous.

Sales Service
- Guaranty Period: One year (main parts; wearing parts excluded)
- Parts Delivery: Spare parts dispatched within three working days via TNT.
- Technical Support: Assistance via email or video; overseas technician
support available at additional cost.
- Installation & Commissioning: On-site installation and commissioning
services available; buyer covers technician costs.

Standard Accessories
- Hydraulic overload protector.
- Electric lubrication device.
- Digital die height indicator (unit: 0.1MM).
- Balance device.
- Rotary cam switches.
- Crank angle indicator
- Circulating centralized lubricating oil installations.
- Electromagnetic stroke counter.
- Second fall protection device
- PLC controller.
- Air blowing material joints.
- Air source receptacle.
- T-Mobile station.
- Independent electrical control box.
- Maintenance toolbox
- Inverter.
- Anti vibration device.
- Power plug.

Optional Accessories
- Die cushion.
- Slide knockout device.
- Die room light.
- Main motor reversing device.
- 3-digit counter cutting.
- Safety light sensor.
- Security and safety latch stopper.
- Presetting counter(6 digits).
- Load detection device.
- Misfeed detection device.
- Base screws and base plate.
- Security and safety ladder rack.
- Quick die change device.

The GOANWIN S2N Series Closed Double-Point Eccentric Gear Press is designed
to deliver exceptional precision, safety, and operational efficiency for
demanding industrial applications. With its customizable options and state-
of-the-art technology, it is the ultimate choice for manufacturers aiming
to elevate their production capabilities.
Contact us today to learn more about the S2N series and how it can help you
achieve outstanding results in your manufacturing operations!
