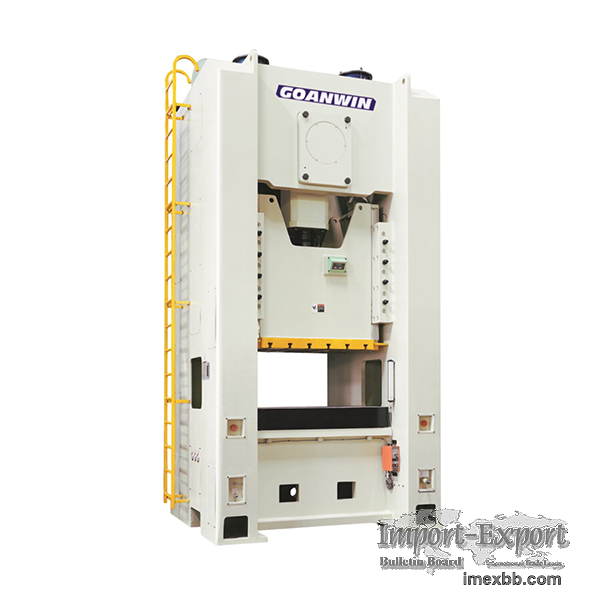

GOANWIN M1N H-Frame Single Crank Press for Wind Turbine Rotors, Car Seat Be

Applications
Wind turbine rotors, Car seat belt brackets, Car valve sheets, Car electric
slide rails, Hammer mill screens for feed.

Description
The GOANWIN M1N H-Frame Single Crank Press is a robust and versatile
solution for precision stamping applications across multiple industries.
Engineered with European, American, and Japanese advanced technologies and
optimized using CAE dynamic simulation, the M1N series delivers superior
performance, durability, and accuracy.
Featuring a high-rigidity steel-welded or integral casting frame, this
press minimizes deformation, ensuring exceptional stability and extending
die life. With its intelligent automation, advanced safety features, and
user-friendly human-machine interface, the M1N series is ideal for large-
scale industrial applications like wind turbine rotor stamping, automotive
parts production, and more.

Features
1.High Rigidity Frame Design
- Built with high-quality steel plates, shot-blasted and stress-relieved
for stable, long-lasting precision.
- The closed-type structure offers greater strength, rigidity, and accuracy
compared to open-frame presses.

2.Enhanced Stamping Precision
- Equipped with four-corner and eight-sided long guide rails, ensuring
stable and precise slider movement.
- Crankshafts, gears, and key components undergo tempering and grinding for
enhanced durability and performance.

3.Comprehensive Safety Systems
- Includes hydraulic overload protection, a double solenoid valve, and a
brake release device for operational safety and emergency stops.
- Overrun safety device prevents mechanical damage during production.

4.Intelligent Automation
- Features an automatic lubrication system to ensure smooth operation.
- Frequency conversion speed regulation to adapt to various work
requirements.
- Compatible with peripheral equipment like feeders, uncoilers, and sheet
metal levelers for improved production efficiency.

5.User-Friendly Adjustability
- Motorized mold height adjustment with an electric die height indicator
for quick and precise setups.
- Versatile mold height settings accommodate a wide range of applications.

6.Durability & Reliability
- Shot blasting and stress treatment enhance the structural integrity of
the press.
- Advanced components like electromagnetic clutches and pneumatic systems
ensure long-lasting performance.


Specifications
- Tonnage: 125–800 tons.
- Frame Design: High-rigidity steel-welded, closed-type structure.
- Slider Guidance: Four-corner, eight-sided long guide rails.
- Die Height Adjustment: Motorized with electric die height indicator.
- Safety Systems: Hydraulic overload protection, pneumatic clutch-brake
system, double solenoid valve.
- Automation: Frequency conversion speed regulation, auto lubrication
system, and optional peripheral integration.
- Interface: Highly intelligent human-machine interface with Ethernet & USB
connectivity.


Sales Service
- Guaranty Period: One year (main parts; wearing parts excluded)
- Parts Delivery: Spare parts dispatched within three working days via TNT.
- Technical Support: Assistance via email or video; overseas technician
support available at additional cost.
- Installation & Commissioning: On-site installation and commissioning
services available; buyer covers technician costs.

Standard Accessories
- Inverter.
- Touch pad.
- Preset counter.
- Forejudge Counter.
- Electrical cam.
- Hydraulic overload protector.
- Electric slide adjustment device.
- Auto grease pump.
- Electric die height indicator.
- Balance device.
- Crank angle indicator.
- Speed indicator.
- Air source receptacle.
- Second fall protection device.
- Misfeed detection consent.
- Power socket.
- Maintenance toolbox.
- Operation manual.
- Anti vibration mount.

Optional Accessories
- Pneumatic die cushion device.
- Foot switch.
- Quick die change device (die lifter, clamp, and die arm).
- Slide knockout device.
- Die room lighting system.
- Safety light sensor.
- Feeder.
- Uncoiler.
- Straightener.
- Mechanized handling system.

The M1N Series is designed to tackle modern manufacturing challenges with
advanced automation, superior safety features, and robust precision. Its
reliability and adaptability make it the perfect solution for high-
strength, high-rigidity, and high-accuracy stamping operations.
Contact us today to discover how the GOANWIN M1N series can enhance your
production capabilities and efficiency!

Minimum Order: 1 pieces
