GOANWIN GT Knuckle Joint High Speed Press for Lead Frames and Semiconductor

Applications
Lead Frames, Semiconductor Connectors, IPM Modules, FPC Circuit Boards,
Robot Motor Cores (Stator and Rotor), Electric Toothbrush Motor Cores,
Battery Shells and Caps (Round button and cylindrical lithium), Copper
Needle Connectors, BD Connectors.

Description

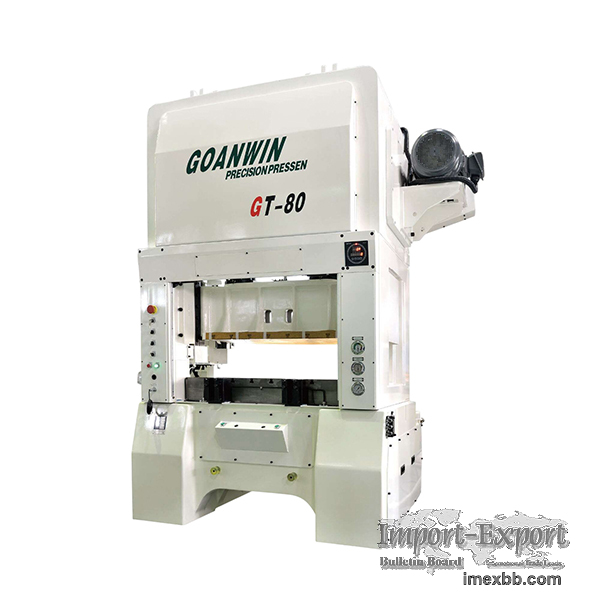

The GOANWIN GT Series Knuckle Joint High-Speed Press is specifically
designed for precision stamping applications, excelling in the production
of lead frames, semiconductor connectors, and other high-precision
components. This press utilizes a toggle linkage mechanism to deliver
exceptional rigidity, thermal balance, and operational accuracy.
Capable of performing advanced stamping processes such as deep drawing,
pressure holding, coining, cold forging, and net-shape metal forming, it is
built to meet the demands of high-speed and high-volume production
environments. Its innovative features, including servo die height
adjustment with memory, an advanced counterbalance system, and eight-sided
needle-bearing guidance, ensure reliable performance and extended die life.
The GT Series is the ideal solution for industries requiring precision,
efficiency, and durability in metal forming, from electronic components to
automotive applications.

Features
1.Maximized Knuckle Joint Efficiency
- High rigidity, thermal balance, and minimized deformation under heavy
loads.
- Simplified structure for enhanced productivity and ease of maintenance.

2.Servo-Controlled Die Height Adjustment
- Features memory functionality, enabling quick mold changes and improved
operational efficiency.

3.Advanced Counterbalance System
- Suppresses displacement of closed die height due to speed changes.
- Minimizes bottom dead center (BDC) displacement between first and second
punches.

4.Eccentric Load Resistance
- Equipped with a double plunger and eight-sided needle-bearing guidance,
enhancing slide stability under eccentric loads.

5.Quiet and Durable Operation
- Backlash-free clutch/brake system offers low noise and extended
durability.

6.Widest Bolster Sizes in Class
- Provides wide bolster dimensions for versatility in handling various
stamping applications:
60-ton: 1100mm (standard) or 1350mm (wide).
80-ton: 1200mm (standard) or 1500mm (wide).

7.Enhanced Operability
- Electronic rotary crank angle display for user-friendly operation.
- Extended slide adjustment range for greater convenience and precision.

8.Advanced Lubrication System
- Thin oil forced lubrication suppresses thermal deformation, maintaining
consistent product precision.

Specifications
- Press Capacity: 15–150 tons.
- Frame Design: H-frame structure with toggle knuckle joint mechanism.
- Max Stamping Speed: 2000 spm.
- Die Height Adjustment: Servo-controlled with memory function.
- Slider Guidance: Eight-sided needle-bearing guide system.
- Safety Features: Overrun safety device, pneumatic clutch/brake.
- Lubrication System: Thin oil forced lubrication.

Sales Service
- Guaranty Period: One year (main parts; wearing parts excluded)
- Parts Delivery: Spare parts dispatched within three working days via TNT.
- Technical Support: Assistance via email or video; overseas technician
support available at additional cost.
- Installation & Commissioning: On-site installation and commissioning
services available; buyer covers technician costs.

Standard Accessories
- Inverter type variable speed main motor.
- Combination type air friction clutch /Brake.
- Dynamic balancer.
- Electronic rotary cam switch.
- Electronic crank angle indicator.
- Touch Panel.
- Speed meter.
- Total counter(9-digit electronic type).
- Preset counter(9-digit electronic type).
- Hour meter(7-digit electronic type).
- Operation box self-stand type.
- Motor reverse device.
- Missfeed plug/socket(with changeover switch).
- Electric slide adjustment device.
- Micro inching (reverse available).
- Pneumatic control unit.
- Circulation type lubrication unit.
- Gripper feeder.
- Safety door.
- Both hands push buttons.
- Shock absorber.
- Oil heater cooler.
- Stock end stop switch (proximity).
- Stock oil tank (with solenoid valve).
- Stock guide(to the end of bolster).
- Over-tension stop outlet.
- All stop circuit (without timer).
- 200V outlet.
- Air outlet (1/4B).
- Working light.

Optional Accessories
- Air ejector.
- Bottom dead point detector.
- Stock oiling roll.
- Flywheel brake.
- Stock holding cylinder.
- Cutting counter.
- Die clamper.

The GOANWIN GT Series Knuckle Joint High-Speed Press offers cutting-edge
technology and robust performance for manufacturers seeking high-speed
precision processing. With features that enhance accuracy, reduce noise,
and improve die life, it is the ultimate choice for reliable and efficient
metal forming.
Contact us today to learn more or request a custom solution tailored to
your manufacturing needs!
