GOANWIN GS C-Frame High Speed Press for Cold Terminal, VCM Shrapnel

Applications
USB Connectors, HDMI Connectors, Eyelets, Terminals, VCM Shrapnel, Plug
Pins, Utility Knives, Mechanical Connectors

Description

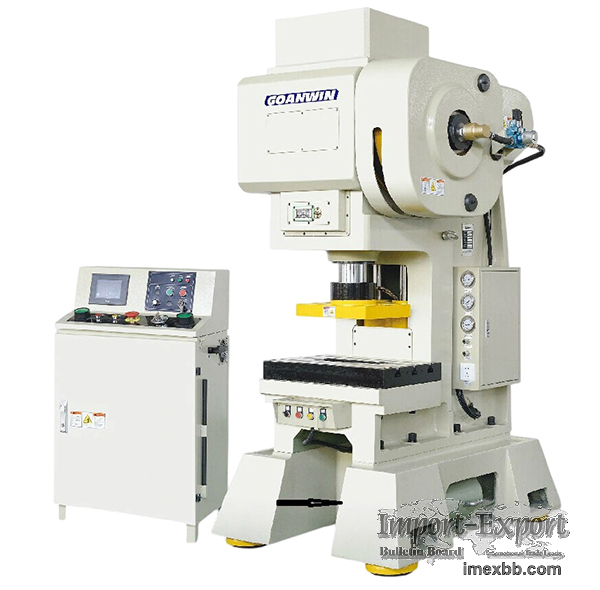

The GOANWIN GS Series C-Frame High-Speed Press is purpose-built for
precision applications in metal fabrication and connector manufacturing.
Designed for versatility, it excels in producing USB Connectors, HDMI
Connectors, Eyelets, Terminals, VCM Shrapnel, Plug Pins, Utility Knives,
and Mechanical Connectors. Its compact design ensures unmatched
installation flexibility, surpassing traditional gantry and C-frame high-
speed punching machines.
Featuring enhanced mold installation space, shorter feeder-to-mold
distance, and improved material rack support, the GS Series is optimized
for efficient operations. Built with a three-point fulcrum design using
guide columns and plungers, it guarantees higher accuracy, reduced
deformation, and extended durability. Coupled with an advanced touch screen
for intuitive operation, this high-speed press is the epitome of
reliability and user-friendliness in high-speed progressive die parts
manufacturing.

Features
1.High-Stren , gth C-Frame Design
- Minimizes opening deflection, providing stability and precision for
continuous stamping.

2.Precision Slider Mechanism
- Three-point fulcrum design of guide column and plunger enhances
deflection resistance and accuracy.

3.Enhanced Mold Installation Space
- Greater flexibility than gantry presses, with optimized feeder-to-mold
distance and improved material rack support.

4.High-Speed Stamping Performance
- Achieves up to 900 spm, suitable for thin sheet metal in progressive
molds.

5.Advanced Human-Machine Interface
- Easy-to-use touch screen with fault monitoring and control settings for
seamless operation.

6.Motorized Die Height Adjustment
- Low noise and extended service life, ensuring reliable safety and
operational flexibility.

7.Efficient Lubrication System
- Includes a die height indicator, motorized adjustment, and hydraulic
locking for precise setups.

8.Pneumatic Dry Clutch and Brake System
- Provides quiet operation, extended life, and dependable safety features.

9.Electric Lubrication System
- Efficient lubrication reduces wear and ensures consistent operation.

Specifications
- Press Capacity: 30-80 tons
- Frame Design: C-Type rigid steel frame
- Max Stamping Speed: 900 spm
- Slider Guide: Long and precise six-point, box-type gibbing
- Drive System: Motor-driven flywheel with crankshaft connecting rod
mechanism
- Safety Features: Pneumatic clutch & brake, misfeed detection, and overrun
protection

Sales Service
- Guaranty Period: One year for main machine parts (excluding wearing
parts).
- Parts Delivery: Spare parts dispatched within three working days via TNT.
- Technical Support: Assistance provided via email or video; overseas
technicians available at additional costs.
- Installation & Commissioning: Technicians available for on-site
installation and commissioning, with costs borne by the buyer.

Standard Accessories
- Die height indicator.
- Manual slide adjusting device .
- Hydraulic die locking device.
- Circulated lubrication system.
- Program logical controller.
- Slide and die dynamic balance device.
- Touch pad.
- Mechanical crank angle indicator.
- Air outlet.
- Air ejector.
- Misfeed Detection Device.
- Dynamic balance device.
- Tool box.
- User manual.
- Anti-vibration press mount.

Optional Accessories
- Automatic feeder.
- Uncoiler.
- Straightener
- Material lubrication device.
- B.D.C Detector.

The GOANWIN GS Series delivers unmatched speed, precision, and flexibility
for modern manufacturing challenges. Its durable construction, advanced
safety features, and user-friendly operation make it the ideal solution for
high-precision and high-efficiency sheet metal fabrication.
Contact us today to learn more or request a tailored configuration to meet
your production needs!

Minimum Order: 1 pieces
