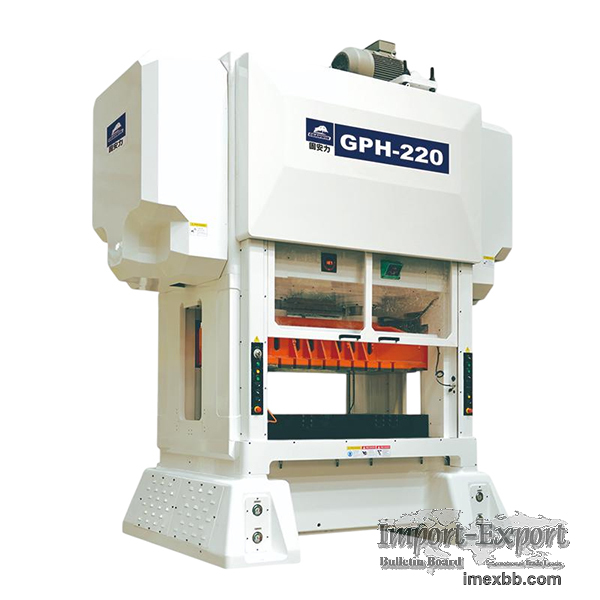

GOANWIN GPH H-Frame High Speed Press for Motor Stators and Rotors

Applications
Motor stators and rotors, E-core terminals, connectors, board-to-board,
mobile phone shrapnel, LED brackets, SMD, and refrigeration heat sinks.

Description
The GOANWIN GPH Series H-Frame High-Speed Press is a cutting-edge solution
for precision metal stamping, delivering unparalleled accuracy,
reliability, and durability. Built with a high-strength steel alloy casting
frame and enhanced by computer-optimized design, this press achieves low
noise, minimal vibration, and extended die life, making it ideal for high-
performance industrial applications.
Equipped with advanced features like a NiCrMo alloy steel crankshaft,
forced lubrication cooling system, and dynamic balance design, the GPH
Series ensures superior stamping quality and operational stability. The
press incorporates an intuitive man-machine interface, enabling real-time
monitoring and management of operational data, product quantities, and
machine status.
From high-precision manufacturing to complex stamping tasks, the GPH Series
sets a new standard in performance, ensuring that even the most demanding
production needs are met with excellence.

Features
1.High-Rigidity Frame Design
- Made of high-strength cast iron, processed to eliminate internal stress
for maximum rigidity and precision.
Frame pre-compressed using hydraulic power to enhance structural integrity.

2.Precision Stamping
Non-clearance axial bearings paired with extended guide cylinders ensure
superior dynamic and static accuracy.
Die height adjustment with a precision display of 0.01mm for intricate
tasks.

3.Dynamic Stability
Excellent dynamic balance design minimizes vibration and noise for precise
and stable operations.
Powerful and sensitive separation clutch and brake for accurate
positioning.

4.Enhanced Durability
NiCrMo alloy steel crankshaft, treated and precision-machined for long-
lasting performance.
Forced lubrication and oil cooling system reduce heat strain, ensuring
consistent stamping quality and extended press life.

5.User-Friendly Operation
Microcomputer-controlled man-machine interface provides clear visibility of
operational data, including product quantity and machine status.
Capability to memorize processing parameters for 30 molds, streamlining
repeatable tasks.

Specifications
- Tonnage: 45-300 tons.
- Frame Material: High-strength steel alloy casting.
- Precision: Die height display accuracy of 0.01mm.
- Guide System: Extended guide cylinders with non-clearance axial bearings.
- Crankshaft Material: NiCrMo alloy steel.
- Clutch/Brake System: Italian OMPI integrated clutch and brake.
- Cooling System: Forced lubrication with oil cooling.
- Control System: Microcomputer-controlled interface.

Sales Service
Guaranty Period: One year for main machine parts (excluding wearing parts).
Parts Delivery: Spare parts dispatched within three working days via TNT.
Technical Support: Assistance provided via email or video; overseas
technicians available at additional costs.
Installation & Commissioning: Technicians available for on-site
installation and commissioning, with costs borne by the buyer.

Standard Accessories
- Die height indicator.
- Manual slide adjusting device .
- Hydraulic die locking device.
- Circulated lubrication system.
- Program logical controller.
- Slide and die dynamic balance device.
- Touch pad.
- Mechanical crank angle indicator.
- Air outlet.
- Air ejector.
- Tool box.
- User manual.
- Anti-vibration press mount.
- Misfeed Detection Device.
- Dynamic balance device.
- Material lubrication device.
- B.D.C Detector.

Optional Accessories
- Automatic feeder.
- Uncoiler.
- Slide knock-out device.

The GOANWIN GPH Series H-Frame High-Speed Press delivers exceptional
performance for industries requiring high-precision stamping. Its robust
construction, advanced features, and user-friendly interface ensure
operational efficiency and reliability. Contact us to learn more or to
request a customized quote!

Minimum Order: 1 pieces
