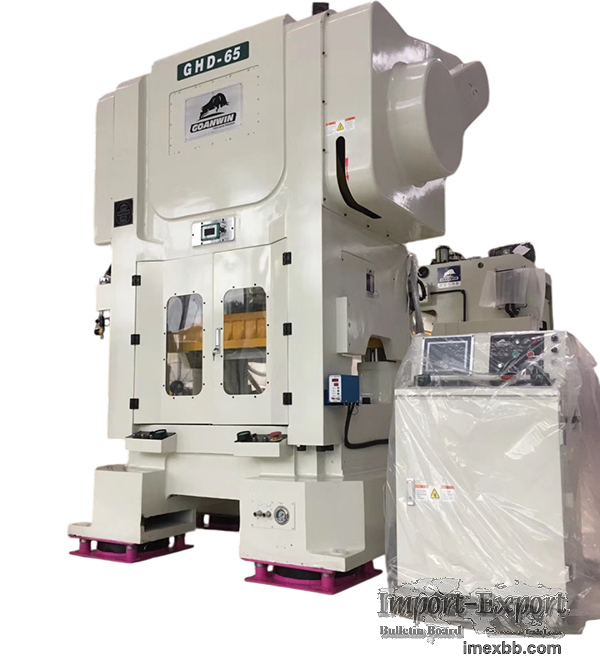

GOANWIN GHD H-Frame High Speed Press for Precision Terminals, Connectors

Applications
Precision wiring terminals, connectors, mobile phone shrapnel, LED
brackets.

Description
The GOANWIN GHD Series H-Frame High-Speed Press is a state-of-the-art
stamping solution designed for high-precision and high-efficiency
operations. Built with a robust H-frame structure using high-strength cast
iron, it provides exceptional stability and accuracy during extended
progressive production.
With a stamping speed of up to 1000 strokes per minute (SPM) and tonnage
ranging from 30 to 65 tons, this high-speed press is ideal for processing
thin metal sheets using progressive molds. Applications include blanking,
forming, bending, and piercing, with the option of integrating an automatic
feeding line for enhanced productivity.
Equipped with advanced features such as biaxial center guides, a forced
lubrication system, and oil cooling, the GHD Series ensures minimal thermal
deformation, reduced vibration, and extended press life, even under
eccentric loads. This press is the perfect choice for industries requiring
precision stamping and high-speed operations.

Features
1.High Rigidity and Stability
- Lathe bed high strength cast iron, high precision gantry structure of an
organic whole, to prevent the load time of the opening question, realized
the high precision products processing.
- Four full-length guide pins ensure excellent stamping precision under
eccentric loads.

2.High-Performance Design
- Biaxial center guide, four guide pin length orientation all the way, so
even eccentric load can keep excellent precision stamping, extend the life
of the punch.
- Max stamping speed of up to 1000 SPM for increased productivity.

3.Precision and Durability
- Forced lubrication system minimizes wear and ensures consistent
performance.
- Oil cooling system reduces thermal deformation for high-precision
operations.

4.Dynamic Balance
- Advanced dynamic balance device reduces vibration for superior accuracy
and stability.

5.Versatile Applications
- Compatible with progressive molds for blanking, forming, bending, and
piercing.
- Ideal for industries processing thin metal sheets with high-speed
production demands.

Specifications
- Tonnage: 30-65 tons.
- Speed: Max 1000 strokes per minute (SPM).
- Frame Type: H-Frame, high-rigidity cast iron construction.
- Guidance System: Biaxial center guide and four full-length guide pins.
- Lubrication System: Forced lubrication with oil cooling.
- Integration: Compatible with automatic feeding lines.


Sales Service
Guaranty Period: One year for main machine parts (excluding wearing parts).
Parts Delivery: Spare parts dispatched within three working days via TNT.
Technical Support: Assistance provided via email or video; overseas
technicians available at additional costs.
Installation & Commissioning: Technicians available for on-site
installation and commissioning, with costs borne by the buyer.

Standard Accessories
- Die height indicator.
- Manual slide adjusting device .
- Hydraulic die locking device.
- Circulated lubrication system.
- Program logical controller.
- Slide and die dynamic balance device.
- Touch pad.
- Mechanical crank angle indicator.
- Air outlet.
- Air ejector.
- Tool box.
- User manual.
- Anti-vibration press mount.
- Misfeed Detection Device.
- Dynamic balance device.
- Material lubrication device.
- B.D.C Detector.

Optional Accessories
- Automatic feeder.
- Uncoiler.
- Slide knock-out device.

The GOANWIN GHD Series H-Frame High-Speed Press delivers unparalleled
performance, precision, and durability. Its high-speed capabilities and
advanced features make it the ideal choice for industries requiring rapid
and precise metal sheet processing. Contact us for more details or a
customized quote!

Minimum Order: 1 pieces
