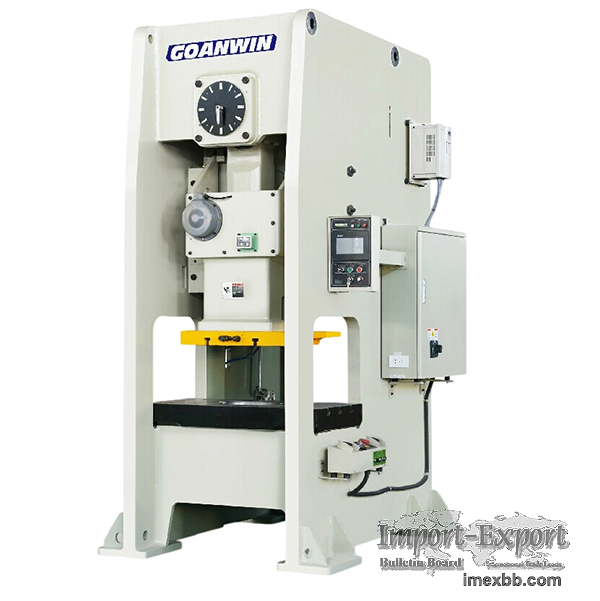

GOANWIN D1N D-Frame Single Crank Press for Hardware, Automotive Parts

Applications
Hardware, Automotive Parts, and Electronic Components.


Description
The GOANWIN D1N Series D-Frame Single Crank Press is engineered for
precision and reliability in manufacturing hardware, automotive parts, and
electronic components. Its robust welded steel plate H-frame construction
ensures high intensity and rigidity, making it an ideal solution for high-
precision stamping applications.
Equipped with advanced features such as an 8-face long guide rail for
superior guidance performance, hydraulic overload protection, and a
combined wet multi-disc clutch and brake, this press guarantees excellent
performance and operator safety. Designed to meet diverse manufacturing
needs, the D1N series offers high accuracy, reduced deformation, and
extended mold life, making it a preferred choice for industries demanding
precision and efficiency.
With a user-friendly interface, intelligent safety functions, and optional
automation capabilities, the GOANWIN D1N Series is perfect for enhancing
productivity while maintaining operational convenience.

Features
1.Robust Construction and Design
- Welded steel plate H-frame body with high rigidity to minimize
deformation.
- Eight-face long guide rail ensures precise and stable sliding block
movement.

2.Enhanced Performance
- Hydraulic overload protector prevents damage to the press and die.
- Combined wet multi-disc friction clutch and brake for smooth and quiet
operation.

3.Precision and Efficiency
- Electric die height adjustment with a digital display for precise and
repeatable settings.
- Rotary encoder control and human-machine interface for intuitive
operation.

4.Safety and Reliability
- Electric cam device with intelligent top dead center stop function.
- Balancing cylinder with a manual lubrication system for consistent
operation.

5.Operational Excellence
- Fixed lock hexagonal guide rail for superior rigidity.
- High rigidity casting slide ensures shock absorption and reduced stamping
noise.

Specifications
- Tonnage: 80–260 tons.
- Frame Type: D-Frame, H-frame welded steel plate construction.
- Drive System: Single crank with combined wet multi-disc friction clutch
and brake.
- Slide Guidance: 4-corner & 8-face long guide rail.
- Die Height Adjustment: Electric with digital display..
- Safety Features: Hydraulic overload protector, intelligent cam system
- Control System: Rotary encoder control with human-machine interface..
- Noise Reduction: High rigidity casting slide for lower blanking noise
- Accuracy: High precision stamping with minimal deformation.

Sales Service
- Guaranty Period: One year for main machine parts (excluding wearing
parts).
- Parts Delivery: Dispatched within three working days via TNT.
- Technical Support: Assistance provided via email or video; overseas
technicians available at additional costs.
- Installation & Commissioning: Technicians can be dispatched for
installation and commissioning, with costs covered by the buyer.

Standard Accessories
- Inverter.
- Touch pad.
- Preset counter.
- Forejudge counter.
- Electrical cam.
- Hydraulic overload protector.
- Electrical slide adjust device.
- Electrical die height indicator.
- Balance device.
- Crank angle indicator.
- Speed indicator.
- Air source receptacle.
- Second fall protection device.
- Misfeed detection device.
- Power socket.
- Maintenance tool box.
- Operation manual.
- Anti vibration press mount.

Optional Accessories
- Auto grease pump
- Pneumatic die cushion device.
- Foot switch.
- Quick die change device(die lifter, clamp and die arm sepjes).
- Slide knock-out device.
- Die room light.
- Safety light sensor.
- Feeder.
- Uncoiler.
- Straightener.
- Mechanism hand.

The GOANWIN D1N Series D-Frame Single Crank Press is designed to deliver
unparalleled precision, safety, and efficiency for industrial applications.
Contact us today for a quote or more information!

Minimum Order: 1 pieces
