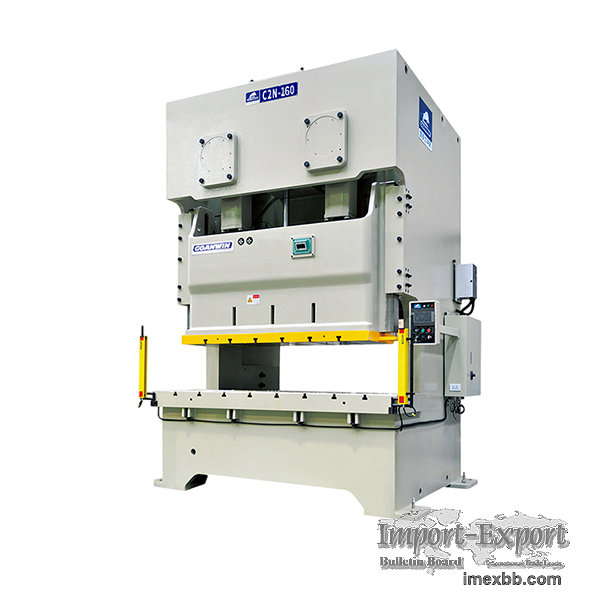

GOANWIN C2N C-Frame Double Crank Press for Lipstick Shells, Motor Housings

Applications
Smoke alarms, motor housings, lipstick shells, fuel injectors, gearbox
components, vending machine parts, bathroom pipelines, and hinges.

Description
The GOANWIN C2N Series C-Frame Double Crank Press is a high-precision,
reliable solution for a diverse range of metal stamping applications,
including punching, blanking, bending, and forming operations. With its
robust welded steel frame and advanced transmission structure, the C2N
Series ensures stability and precision during high-volume manufacturing.
This press features a large worktable ideal for progressive dies, making it
particularly suited for applications in consumer electronics, automotive
parts, home appliances, and industrial hardware. Its high-rigidity frame
combined with six-sided precision guide rails delivers consistent accuracy,
even for demanding stamping tasks.
Designed with operator safety and efficiency in mind, the C2N Series
includes a hydraulic overload protector, double solenoid valve, and brake
release device. It offers features like frequency conversion speed
regulation and electric die height adjustment for operational flexibility,
making it an excellent choice for manufacturers seeking productivity and
reliability.

Features
1.Superior Frame Design
- High-rigidity welded steel frame, shot blasted, and stress-relieved for
stable accuracy and long-term durability.
- C-frame design offers easy accessibility for die setup and adjustments.

2.Precision Guidance System
- Six-sided precision guide rails ensure stable and accurate stamping
operations.
- Anti-eccentricity guide rails enhance offset load resistance.

3.Optimized Transmission
- Tempered and ground crankshafts and gears provide superior performance
and durability.
- Double crankshafts with reverse rotation minimize lateral forces for
enhanced stability.

4.Enhanced Functionality
- Electric die height adjustment with a digital display for precise mold
settings.
- Large worktable accommodates progressive dies for efficient high-volume
production.

5.Advanced Safety and Control
- Hydraulic overload protector and double solenoid valve for safe and
reliable operation.
- Brake release device ensures immediate stops during emergencies to
protect operators.
- PLC-based control panel with an intuitive touch screen for streamlined
operation.

6.Efficient Operation
- Frequency conversion speed regulation adapts to varied production needs.
- Automatic oil lubrication system ensures smooth and reliable operation.

7.Automation Ready
- Compatible with peripheral devices such as feeders, uncoilers, and
straighteners to enhance production efficiency.

Specifications
- Tonnage: 110–315 tons.
- Frame Design: C-Frame, welded steel plate construction.
- Worktable: Super large size, designed for progressive dies and thin plate
processing.
- Guiding System: Six-sided precision guide rails.
- Die Height Adjustment: Electric, with digital display.
- Drive System: Double crankshaft with reverse rotation for reduced side
forces.
- Control System: PLC-based control with an intuitive touch screen.
- Safety Features: Hydraulic overload protector, double solenoid valve, and
brake release device.

Sales Service
- Guaranty Period: One year for main machine parts (excluding wearing
parts).
- Parts Delivery: Dispatched within three working days via TNT.
- Technical Support: Assistance provided via email or video; overseas
technicians available at additional costs.
- Installation & Commissioning: Technicians can be dispatched for
installation and commissioning, with costs covered by the buyer.

Standard Accessories
- Inverter.
- Touch pad.
- Preset counter.
- Forejudge counter.
- Electrical cam.
- Hydraulic overload protector.
- Slide adjust device.
- Die height indicator.
- Balance device.
- Auto grease pump
- Crank angle indicator.
- Speed indicator.
- Air source receptacle.
- Second fall protection device.
- Misfeed detection device.
- Power socket.
- Maintenance tool box.
- Operation manual.
- Anti vibration press mount.

Optional Accessories
- Pneumatic die cushion device.
- Foot switch.
- Quick die change device(die lifter, clamp and die arm sepjes).
- Slide knock-out device.
- Die room light.
- Safety light sensor.
- Feeder.
- Uncoiler.
- Straightener.
- Mechanism hand.

The GOANWIN C2N Series C-Frame Double Crank Press is the perfect solution
for precision metalworking applications, combining rigidity, versatility,
and safety to enhance productivity. Contact us today to learn more or
request a customized quote!

Minimum Order: 1 pieces
