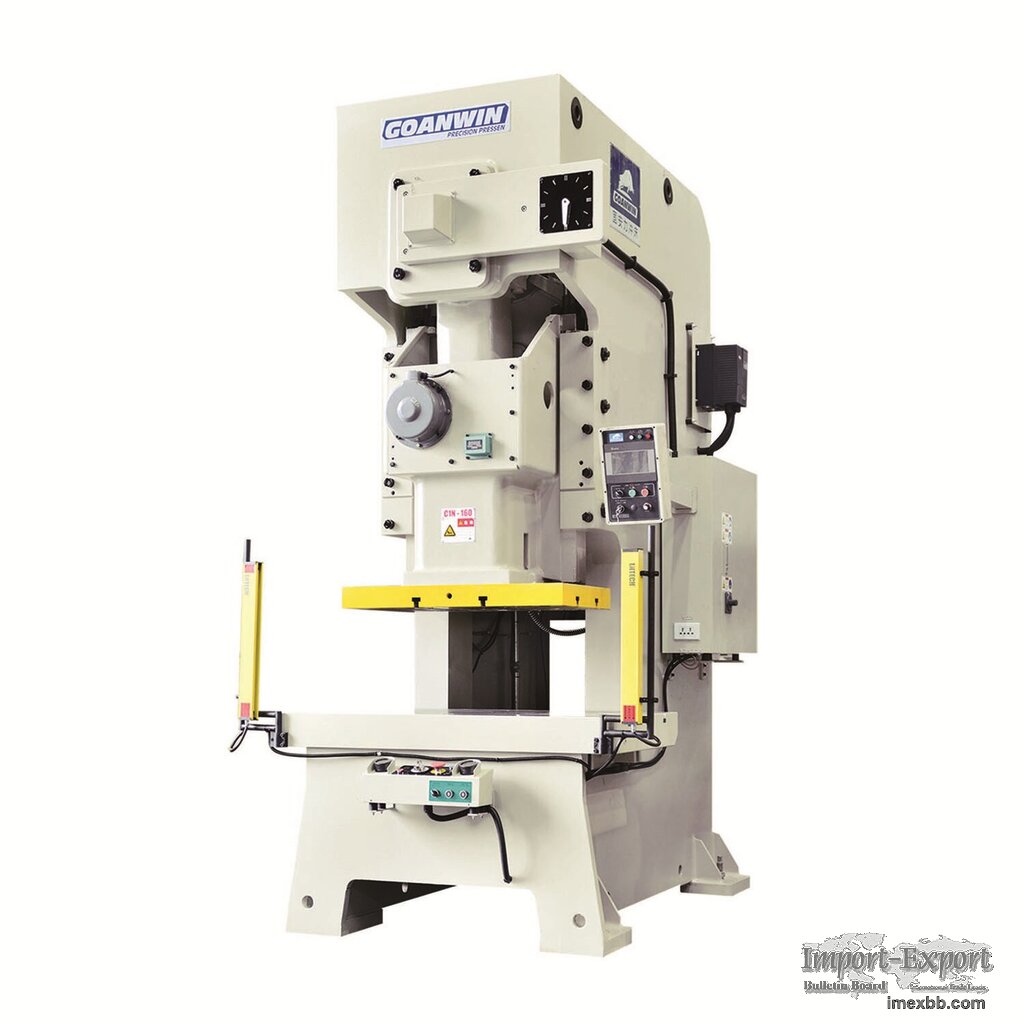

GOANWIN C1N C-Frame Single Crank Power Press for Hinge, Slide Rail

Applications
Mercedes-Benz OEM car brake suspension swing arm, car seat slide rail,
stretched new energy battery pole, TV accessories, vertical floor-standing
mobile TV stand, wall-mounted TV stand, stand base, tray, back panel,
bracket, refrigerator base, computer stand, bookshelf beam, computer case,
solar stand, car engine injector housing, New energy battery accessories,
Nanfu No. 7 battery housing, keyboard accessories, engine injector housing,
computer case, metal mesh, microwave oven accessories, aluminum foil lunch
box, notebook AB parts keyboard and cover.

Description
The GOANWIN C1N Series C-Frame Single Crank Power Press is a versatile and
high-performance machine designed for a wide range of metal sheet stamping
applications, including hardware parts, home appliances, furniture
hardware, motorcycle accessories, mobile phone accessories, and computer
accessories.
With a steel-welded body and tempering treatment or VSR (Vibratory Stress
Relief), the C1N Series offers exceptional rigidity, accuracy, and
stability. It features a pneumatic dual balance cylinder to balance the
slide and punch weight, reducing noise and impact during operations. Built
to JIS Class 1 accuracy standards, this press delivers consistent
performance for blanking, punching, bending, and forming processes.
Equipped with a user-friendly PLC control system and international-grade
components, the C1N Series ensures durability, precision, and operator
safety. It is an ideal choice for manufacturers seeking reliable and
efficient stamping solutions.

Features
1.Superior Rigidity and Stability
- Steel-welded, one-piece body with tempering to eliminate internal stress.
- High rigidity frame to minimize deflection and ensure stability.

2.Precision and Reliability
- Lengthened six-face rectangular guide with high guiding precision.
- Crankshaft treated with grinding and high-frequency quenching for
durability.
- Japanese bearings and imported oil seal linings for enhanced machine
longevity.

3.Advanced Control System
- PLC-based control with imported safety duplex valve.
- Integrated electrical panel with electric cam and touchpad interface.

4.Safety and Ergonomics
- Two-hand operation buttons and emergency stop for operator safety.
- Hydraulic overload protector to safeguard the machine and tooling.

5.Efficient Operation
- Dry or wet clutch system options integrated with brake system and anomaly
detection.
- Air ejector device to protect molds and improve efficiency.

Specifications
- Press Tonnage: 15-400 tons.
- Press Type: C-Frame Single Crank Mechanical Press.
- Frame Material: High-quality steel plate with welded, one-piece
construction.
- Accuracy: JIS Class 1.
- Control System: PLC-based with international brand components.

Sales Service
- Guaranty Period: One year for main machine parts (excluding wearing
parts).
- Parts Delivery: Dispatched within three working days via TNT.
- Technical Support: Assistance provided via email or video; overseas
technicians available at additional costs.
- Installation & Commissioning: Technicians can be dispatched for
installation and commissioning, with costs covered by the buyer.

Standard Accessories
- Inverter.
- Touch pad.
- Preset counter.
- Forejudge counter.
- Electrical cam.
- Hydraulic overload protector.
- Mechanical Slide adjust device(60T and below).
- Electric Slide adjust device(over 60T).
- Mechanical Die height indicatot(60T and below).
- Electric Die height indicator(over 60T).
- Balance device.
- Crank angle indicator.
- Speed indicator.
- Air source receptacle.
- Second fall protection device.
- Misfeed detection device.
- Power socket.
- Maintenance tool box.
- Operation manual.
- Anti vibration press mount.

Optional Accessories
- Auto grease pump(standard for over 110T).
- Pneumatic die cushion device.
- Foot switch.
- Quick die change device(die lifter, clamp and die arm sepjes).
- Slide knock-out device.
- Die room light.
- Safety light sensor.
- Feeder.
- Uncoiler.
- Straightener.
- Mechanism hand.

The GOANWIN C1N Series C-Frame Power Press is your reliable partner for
high-precision metal sheet stamping. Contact us today to learn more or
request a quote.

Minimum Order: 1 pieces
