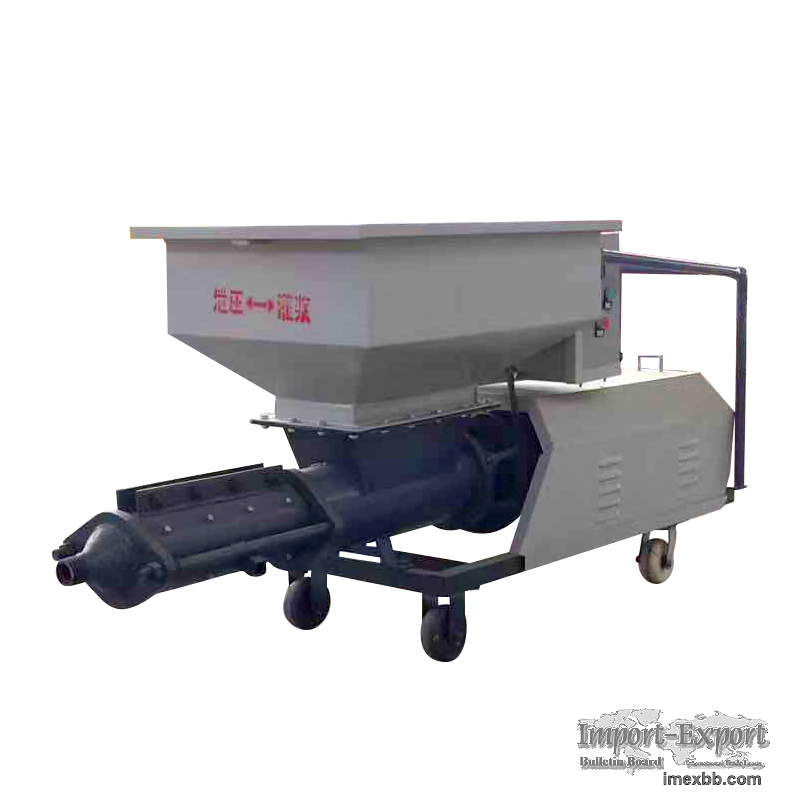

GM-55 Grouting pump JOKI

Grouting Pump Introduction:
What is the Role of the Grouting Pump?
The JOKI grout pump can be used to fill small gaps and door jams, and there are
five types of manual, electric, gas, hydraulic and pneumatic to choose from.
The portable grout pump is strong enough to lift concrete up many floors.
Model GM-55
Capacity 1800L/H 3500L/H
Power 5.5KW
The max diameter of aggregate ≤4mm
W/C ≥0.30
Injection Pressure 2.5-5.0
Vertical conveying distance 50-80m
Horizontal conveying distance 180m
Bucket Capacity 110L
Dimensions(mm) 1300*660*870
N/W(kg) 280Kg
Operating air Pressure 0.5-0.7 MPa
Blast consumption ≥3.0 m³/min
Grouting Pump Features:
Repair and maintain easily.

Small volume and lightweight, convenient for moving.

Grouting pump machine JOKI Applications:
Heavy construction tunnels, dams, shafts, mining, geotechnical engineering,
building construction, repair and maintenance works. This machine can transport
a variety of construction materials, such as cement, anchor mortars, premixed
cement/sand/flyash mixes.

If you want to know more JOKI grouting pump price knowledge, click here to
consult us.

Minimum Order: 1 sets
