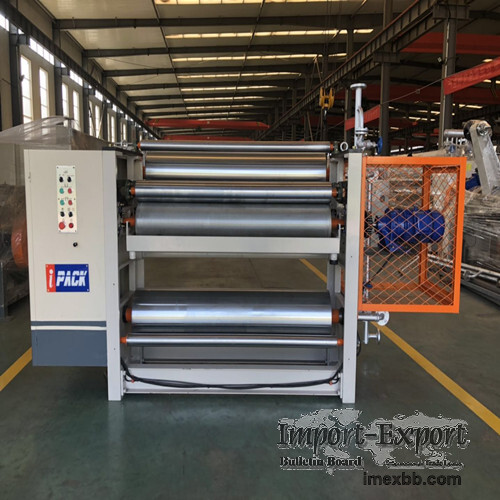

Glue Machine

Huatao Group - Corrugator Belt & Spare Parts
Web: www.htwirebelt.com www(dot)htwirebelt.com
Email: maple@huataogroup.com maple(at)huataogroup.com
Tel: 0086 133 8311 0583
WhatsApp: 0086 133 8311 0583

Product Description

Gluer Machine Applicable Paper Width: 1,400-2,300 mm

Configuration:
1. The designed maximum operating speed is 220 m/min;
2. The glue roller and meter roller adopt modular and built-in design, they can
be installed and removed from the operation side to facilitate repair and
maintenance;
3. A pressure arm locking mechanism is provided to ensure stable and reliable
operation performance of paper pressing roller (touch pressing plate) under
high-speed operation state;
4. The gap between the glue roller and the meter roller can be automatically
adjusted according to the speed, paper material and flute type;
5. The touch pressing mechanism for glue application is a paper pressing
roller, and the gap between the paper pressing roller and the glue roller can
be adjusted electrically to facilitate rapid changeover for processing
cardboards with different flute types;
6. The glue pan is lifted pneumatically to facilitate cleaning. There are glue
blocking plates installed at both ends of the glue pan to well prevent glue
from splashing from the shaft ends during high-speed operation of the glue
roller and meter roller;
7. Layered independent frequency conversion motor, synchronous belt
transmission and relatively independent control are used in the power part to
ensure the precision of transmission and to greatly reduce the vibration and
noise during operation;
8. Layered independent adjustment and touch panel man-machine interface control
are employed, so the adjustment and control are more flexible and
directviewing;
9. The floating roller of the pre-heating cylinder is electrically adjustable
(this function is optional to users) to facilitate paper passing through and
adjustment of angle of contact.
GLD6A glue applying machine for 2-layer corrugated cardboard.


Paper Width External Dimensions
(L×W×H) Weight
(T) Whole Machine Power
(kW)
1,400 1,450×1,830×2,915 7.4 10
1,600 1,450×2,030×2,915 7.8 10
1,800 1,450×2,230×2,915 8.2 10
2,000 1,450×2,430×2,915 8.6 10
2,200 1,450×2,630×2,915 9.0  10

Minimum Order: 1 sets
