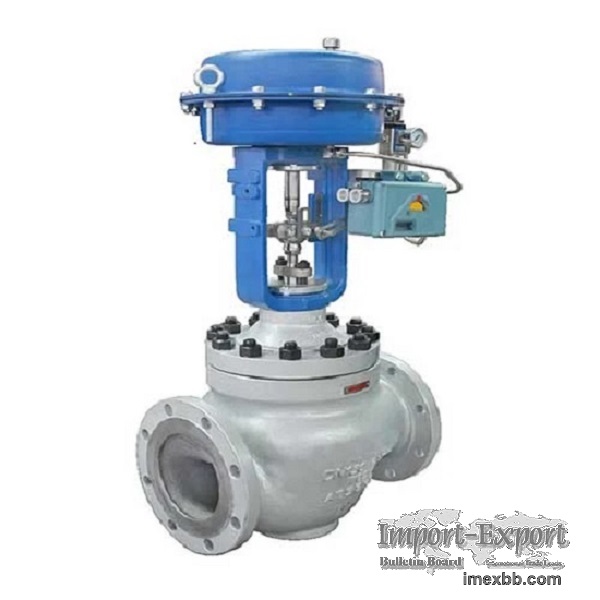

Globe Control Valve

A Globe Control Valve is a type of linear motion valve primarily used to
regulate fluid flow in pipelines. It consists of a movable disk (or plug) and a
stationary ring seat within a globe-shaped body. Here are the key features,
functionality, and applications of globe control valves:

Key Features:
Linear Motion: Operates by moving a plug up and down to control the flow of
fluid.
Precise Flow Control: Designed for accurate regulation of flow, pressure, or
temperature.
Versatility: Suitable for a wide range of applications, including both
throttling and isolation services.
Functionality:
Movable Disk and Stationary Seat: The globe valve controls flow rate by raising
or lowering the plug, which sits in the stationary ring seat. When the plug is
lifted, fluid flows through the valve. Lowering the plug reduces the flow rate
or completely stops it.
Globe-Shaped Body: The unique design of the globe-shaped body allows for a
smooth and controlled flow path, contributing to the precise control
capabilities of the valve.
Applications:
Globe control valves are versatile and widely used in various industries,
including:

Oil and Gas: Essential for controlling the flow of oil and gas in pipelines and
processing plants.
Chemical Processing: Used to regulate the flow of chemicals in production
lines.
Power Generation: Manage the flow of steam, water, and other fluids in power
plants.
Water Treatment: Control the flow of water in treatment plants and distribution
systems.
Advantages:
Accurate Regulation: Globe control valves provide precise control over flow
rates, making them ideal for process control systems.
Durability: Constructed to withstand harsh conditions and high-pressure
environments.
Reliability: Consistent performance ensures smooth operation in critical
applications.
Globe control valves are essential components in process control systems where
accurate regulation of flow, pressure, or temperature is required. Their
precise flow control capabilities make them a preferred choice for many
industrial applications.
