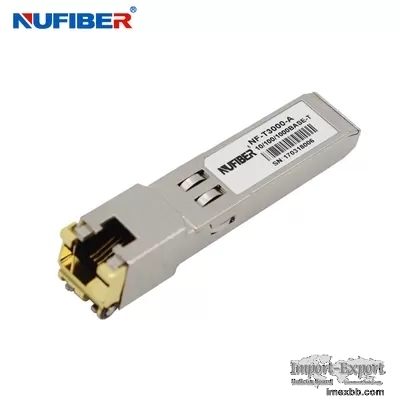

GLC-T 1.25 Gigabit Ethernet Sfp Module , 100m Copper Sfp Transceiver

Product Description
1.25Gb/s GLC-T 10/100/1000M Copper Ethernet SFP Transceiver 100m

Description
GLC-T10/100/1000 copper SFP transceiver is high performance, cost effective module
compliant with the Gigabit Ethernet and 10/100/1000BASE-T standards as specified in
IEEE 802. 3-2002 and IEEE 802.3ab, which supporting 10/100/1000Mbps data- rate up
to 100 meters reach over unshielded twisted-pair category 5 cable. The GLC-
T10/100/1000 supports 10/100/1000 Mbps full duplex data-links with 5-level Pulse
Amplitude Modulation (PAM) signals. All four pairs in the cable are used with
symbol rate at 250Mbps on each pair. The GLC-T10/100/1000 provides standard serial
ID information compliant with SFP MSA, which can be accessed with address of A0h
via the 2-wire serial CMOS EEPROM protocol. The physical IC can also be accessed
via 2-wire serial bus at address ACh.

Features

Up to 1.25Gb/s bi-directional data links
Hot-pluggable SFP footprint
Extended case temperature range (-40°C to +85°C )
Fully metallic enclosure for low EMI
Low power dissipation
Compact RJ-45 connector assembly
Detailed product information in EEPROM
+3.3V single power supply
Access to physical layer IC via 2-wire serial bus
10/100/1000 BASE-T operation in host systems with SGMII interface
Compliant with SFP MSA
Compliant with IEEE Std 802.3TM-2002
Compliant with FCC 47 CFR Part 15, Class B
RoHS Compliant Products

Applications

1.25 Gigabit Ethernet over Cat 5 cable
Switch/Router to Switch/Router Link
High speed I/O for file severs

Optical Parameters

Parameter Symbol Min. Typical Max. Units Notes/Conditions
Supply Current Is 320 375 mA 1.2W max power over full
range of voltage and temperature. See caution note below
Input Voltage Vcc 3.13 3.3 3.47 V Referenced to GND
Surge Current Isurge 30 mA Hot plug above steady state
current. See caution note

Parameter Symbol Min. Max. Units Notes/Conditions
SFP Output LOW VOL 0 0.5 V 4.7k to 10k pull-up to host_Vcc.
SFP Output HIGH VOH host_Vcc -0.5 host_Vcc + 0.3 V 4.7k to 10k pull-up
to host_Vcc.
SFP Input LOW VIL 0 0.8 V 4.7k to 10k pull-up to Vcc.
SFP Input HIGH 2 Vcc + 0.3 V V 4.7k to 10k pull-up to Vcc.

Transmission Line-SFP
Parameter Symbol Min. Typical Max. Units Notes/Conditions
Line Frequency fL 125 MHz 5-level encoding, per IEEE
802.3
Tx Output Impedance Zout,TX 100 Ohm Differential
Rx Input Impedance Zin,RX 100 Ohm Differential
