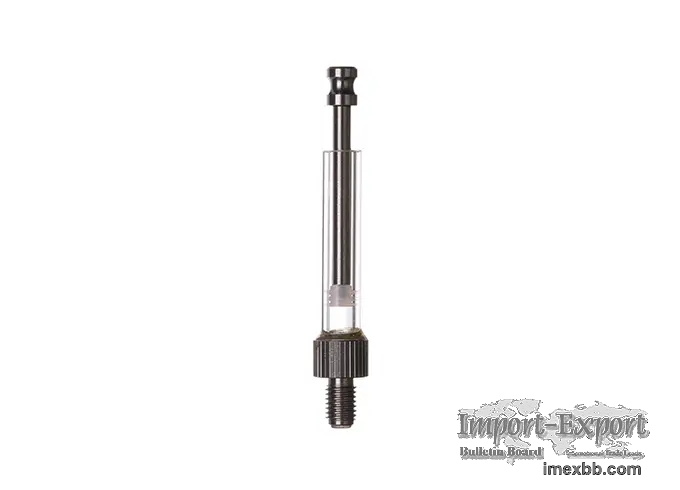

Glass Syringes

The 2HXX series precision china glass syringe is independently developed by
Keyto and its main function is to achieve aspiration and dispensing with
precise dosing. The syringe has a very high repeatability precision(CV) and
accuracy of aspiration and dispensing. Its service life is up to 400,000 cycles
of full strokes for Teflon (PTFE) pistons and up to 800,000 cycles of full
strokes for UHMWPE pistons without compromising repeatability precision(CV) and
accuracy.

Specifications of Glass Syringes
30 mm
Displacement 100μL 250μL 500μL 1ml 2.5ml 5ml
Syringe end size/mm 11 11 11 11 14.5 19
Syringe orifice size/mm 0.6 0.8 0.8 1.9 1.9 1.9
Syringe thrust / N Teflon(PTFE) 14 14 16 16 27
27
(Max) UHMWPE 23 23 27 27 32 36
Accuracy 1%
Plunger connection XC
Life cycle Teflon(PTFE)：400,000 cycles full stroke
UHMWPE：800,000 cycles full stroke
Notes.
1. Aspiration and dispensing CV/accuracy are measured using deionized water at
10% of the total displacement.
2. The test environment is 21-25°C static wind environment.
3. The above syringe life cycle is measured under ideal conditions, the actual
life cycles depend on the operating conditions.

60 mm
Displacement 100μL 250μL 500μL 1ml 2.5ml 5ml 10ml
Syringe end size/mm 10.2 10.2 10.2 10.2 12.7 15.3 19
Syringe orifice size/mm 0.8 1 2 2 2 2 2
Syringe thrust / N Teflon(PTFE) 14 14 14 16 18
27 27
(Max) UHMWPE 23 23 23 27 32 32 36
Accuracy 1%
Plunger connection XL
Life cycle Teflon(PTFE)：400,000 cycles full stroke
UHMWPE：800,000 cycles full stroke
Notes.
1. Aspiration and dispensing accuracy are measured using deionized water at 10%
of the total displacement.
2. The test environment is 21-25°C static wind environment.
3. The above syringe life cycle is measured under ideal conditions, the actual
life cycles depend on the actual operating conditions.
4. 60mm stroke Teflon (PTFE) glass syringes are not available in 100μL zero
dead volume.
5. 60mm stroke UHMWPE glass syringes are not available in 100μL or 250μL zero
dead volume.

Note: Please kindly reach out to our sales team for design and specification
final clarification and confirmation.

Reasons to Buy Keyto Glass Syringes
01
Available in a wide range of syringe volumes
Available in a wide range of syringe volumes: 100μL~10mL.

02
Extremely high and consistent metering precision and accuracy
Extremely high and consistent metering precision and accuracy over the life
cycle.

03
Maintenance-free
Advanc , ed borosilicate glass machining technology, rigorous inspection
procedures, and unique sealing solutions to ensure maintenance-free over the
life cycle of the glass syringes.

04
Good chemical resistance and high wear resistance
Good chemical resistance and high wear resistance of the materials of the
components in contact with the reagents. Ensures that no replacement components
are required during the life cycle.

05
Use of medical grade lubricant
Use of medical grade lubricant GESF96.

06
Maximum working pressure
Maximum working pressure: 0.3 MPa.

As a china glass syringe distributor, we can offer kinds of glass syringes for
sale, and the glass syringe price is low, if you have needs to buy glass
syringe, please contact us.
