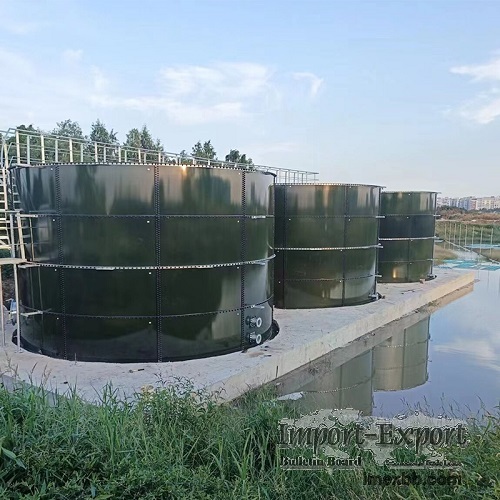

Glass Fused to Steel Tank

Glass fused to steel (GFS) tanks are a type of bolted storage tank made from
two materials: High strength TRS (titanium rich steel) plates and enamels which
are perfectly fused at high temperatures at 820℃ – 930℃ to form a highly
inert inorganic glaze layer. This coating system has excellent anti-corrosion
properties and is the best choice for tank and silo.
Category Specification
Coating Color Dark green, white, blue, color can be customized upon your
request
Coating Thickness 0.25 - 0.40mm, double coating
Acid and alkalinity proof Standard sheet PH: 3 - 11
Special sheet PH: 1 - 14
Adhesion 3450 N / cm
Elastic Same as steel sheet, around 500 KN / mm
Hardness 6.0 ( Mohs )
Service life ≥ 30 Years
Holiday test > 1500 V
Permeability Gas / liquid impermeable
Easy to clean Smooth, glossy, inert, non adhesive
Corrosion resistance Excellent. Suitable for waste water treatment, sewage
treatment, effluent treatment
As an experienced GFS tank manufacturer, ZHAOYANG Tank has been focusing on the
research and production of FRP bolt tanks. After years of continuous
dedication, our GFS tanks have been widely used in domestic municipal
administration, environmental protection, aquaculture and other fields.
Additionally, they are exported to international markets.
