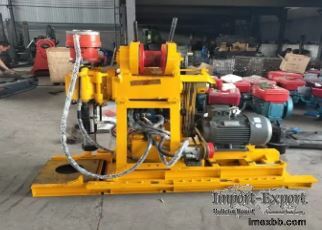

GK200 Hydraulic Feeding 150m Borehole Drilling Equipment

GK-200 mobile drilling machine is widely used and hydraulic feeding , which has
the characteristics of large power, large lifting force (2T) and high
transmission torque.
1. Engineering geological investigation of railways, hydropower, traffic,
bridges, dam foundations and other buildings.
2. Geological core drilling, physical prospecting.
3. Small grout Confucius, drill hole drilling.
4. Small well drilling.

This drilling machine adopts big driven drill pipe and double guide rod to
increase stability .This rig can move 350mm back and forth on the base, so it
facilitates the removal of the drill pipe. This price does not include pumps.

1. Very powerful at soil, sand, hard rock, etc. land condition.


2. Three kinds drill bits (three-wing bit, alloy bit and diamond bit) available
for your choice, which can drill both soft and hard ground, especially


diamond drill bit effective in drilling hard rocks.


3. Hydraulic control system for greatly improving the working efficiency,
saving labor force.


4. Mounted wheel or trailer, can be hauled easily by car or tractor, convenient
to transport.


5. Power can be diesel engine or electric motor, as per your request.
