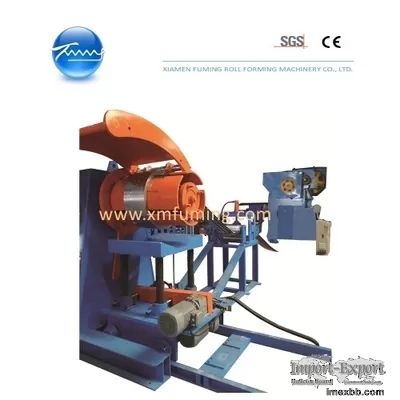

GI Custom Roll Forming Machine 5.5KW Recoiling Line And Perforation Line

Product Description:
This perforation and recoiling line is designed to punch the holes for the
stips, then get the punched strips recoiled. The recoiled strips are
prepared for forming upright profiles by roll forming machine.

Features:
Material: GI
Thickness: 1.5mm to 2.0mm
Press capacity: 100 Tons press
Recoiler motor: 5.5KW
PLC control system

Technical Parameters:
PERFORATION & RECOILING LINE FOR UPRIGHT PROFILE

Material Specification
Thickness 1.5mm to 2.0mm or customized
Size Customized
Material GI, cold rolled steel
Yield strength 550MPa or customized

Machine Components
3Ton*350mm Hydraulic Decoiler With Pre-leveler and Power Feed-in Device
Load capacity Max.3Tons
Coil inner-diameter 510±30mm
Coil outer-diameter 1500mm
Coil width Max.350mm
Motor 2.2KW
Option Please refer to Decoiler on home page
Power Feed-in Rollers
Pre-Level Device with 3 over 4 shafts to remove the Coil-set
Power 5.5KW

100 Tons Press
Servo motor feed-in device 3KW
Quantity of pressing tools 2 sets
Mateiral of pressing tool Cr12Mov, heat treatment
Stroke 45 times/min
Holes patten Customized

Tensioner Device

3Ton*350mm Hydraulic Recoiler
Coil inner hole expanding Hydraulic system, 2.2KW pump motor
Driving motor with brake 5.5KW
Expanding type Taper wedge expanding system
Load capacity Max.3Tons
Coil inner-diameter 510±30mm
Coil outer-diameter 1500mm
Coil width Max.350mm
Up/down stroke of coil car Max300mm
Forward/Backward stroke of coil car Max. 1000mm
Stop/start rotation Automatic stopping device with limited switch to
assist

PLC Control System
Function Control the perforation automatically
PLC Siemens
Touch screen Siemens
Inverter Schneider or Delta
Encoder Omron
Punching tolerance ≤±1 mm
Control Voltage 24V
