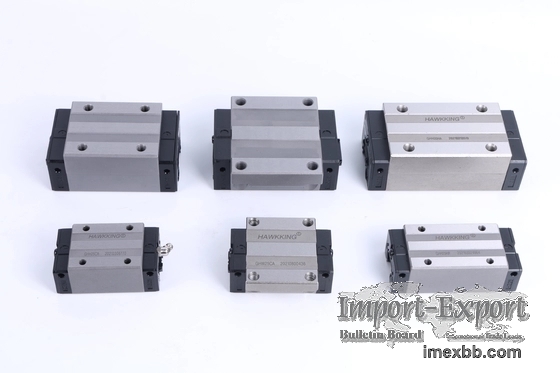

GHH HA Linear Bearing Block Long Life Use 20mm Linear Rails HGH35

Product Description
stainless steel Customized Length Linear Guides HGH35 linear rails block

stainless steel Customized Length Linear Guides HGH35 linear rails block

Linear guide accuracy class also plays an important part in the bearing’s
travel behavior, which is the performance characteristic that most people
associate with the term “accuracy.”

Regardless of size, preload, or mounting configuration, specification 5—
parallelism between the reference edges of the rail and the block—plays a
large part in determining the travel accuracy of the guide system. This
parallelism tolerance specifies how the bearing block will behave positionally
as it moves down the rail. In other words, does the bearing block seem to
deviate side-to-side or up-and-down as it travels?

Model Combination size (mm) Block size(mm) Slide rail size(mm)
Fixing bolts for slide rails

size

Basic dynamic fixed load Basic fixed fixed load Allowable static moment
weight
Mr

kN^n

MP

kNf< , br>
My kNF
block

kg

slide

kg/n

H HI N W B BI C Li L KI
G Mxl T h2 h3 WR HR D h d
P E (mm) C(kN) Co(kN)
GHH15CA 28 4.3 9.5 34 26 4 26 39.4 61.4
10 5.3 M4x5 6 7.95 7.7 15 15 7.5 5.3
4.5 60 20 M4xl6 11.38 25.31 0.17 0.15 0.15 0.18
1.45
GHH20CA 30 4.6 12 44 32 6 36 50.5 77.5
12.25 12 M5x6 8 6 7 20 17.5 9.5 8.5
6 60 20 M5xl6 17.75 37.84 0.38 0.27 0.27 0.30
2.21
GHH20HA 50 65.2 92.2 12.6 21.18 48.84 0.48 0.47 0.47
0.39
GHH25CA 40 5.5 48 35 6.5 35 58 84
16.8 12 M6x8 8 10 23 22 11 9
7 60 20 M6x20 26.48 56.19 0.64 0.51 0.51 0. 51
3.21
GHH25HA 12.5 50 78.6 104.6 19.6 32. 75 76.00 0.87
0.88 0.88 0.69
GHH30CA 45 6 16 60 40 10 40 70 97.4
20.25 12 M8xl0 8.5 9.5 28 26 14 12
9 80 20 38.74 83.06 1.06 0.85 0.85 0.88
4. 47
GHH30HA 60 93 120.4 21.75 13.8 M8x2ij 47.27 110.13 1.40
1.47 1.47 1.16
GHH35CA 55 18 70 50 10 50 80 112.4
20.6 12 16 19.6 34 29 14 12
9 80 20 49.52 102.87 1.73 1.20 1. 20 1.45
6. 30
GHH35HA 1.5 72 105.8 138.2 22.5 M8xl2 60.21
136.31 2.29 2.08 2.08 1.92
GHH45CA 70 9.5 86 60 13 60 97 139.4
23 M10xl7 16 45 38 20 17
14 105 M12x35 77.57 155.93 3.01 2.35 2.35 2.73
10.41
GHH45HA 20.5 80 128.8 171.2 28.9 L8. 30.5 22.5
94.54 207.12 4.00 4.07 4.07 3.61
GHH55CA 80 100 75 75 117.7 166.7
27.35 M12xl8 22 29 53 44 23 20
16 120 30 M14x45 114.44 227. 81 5.66 4.06 4.06 4.17
15.08
GHH55HA 13 23. 5 12. 5 95 155.8 204.8 36.4 12.9
139.35 301.26 7.49 7.01 7.01 5.49
GHH65CA 90 15 126 76 25 70 144.2 200.2
43.1 25 15 15 63 53 26 22
18 150 35 M16x50 163.63 324.71 10.02 6.44 6.44 7.00
21.18
GHH65HA 31.5 120 203.6 259.6 47.8 12.9 M16x20 208.36 457.15
14.15 11.12 11.12 9.82

GHH HA Linear Bearing Block Long Life Use 20mm Linear Rails HGH35 0

GHH HA Linear Bearing Block Long Life Use 20mm Linear Rails HGH35 1

Tips for ordering linear guide and linear guide blocks:

(1) Tell us the width of linear guide: e.g. 9mm

(2) What is the size code of linear guide blocks, pls? E.g. MGN9C, HGH15CA and
etc.

(3) What is the linear guide length you need, and how many guide blocks in one
linear guide, pls? E.g. MNG91R80MM; 1 pcs of blocks on the 80mm linear guide

All Types we can produce Linear Guide:
HGW15CA HGW20CA HGW25CA HGW30CA HGW35CA HGW45CA HGW55CA HGW65CA
HGW15CC HGW20CC HGW25CC HGW30CC HGW35CC HGW45CC HGW55CC HGW65CC
HGH20HA HGH25HA HGH30HA HGH35HA HGH45HA HGH55HA HGH65HA
HGW20HC HGW25HC HGW30HC HGW35HC HGW45HC HGW55HC HGW65HC
HGW20HA HGW25HA HGW30HA HGW35HA HGW45HA HGW55HA HGW65HA
EGH15CA EGH20CA EGH25CA EGH30CA EGH15SA EGH20SA EGH25SA EGH 30SA
EGW15CA EGW20CA EGW25CA EGW30CA EGW15SA EGW20SA EGW25SA EGW30SA

Our advantages for Linear guide HG series:

1. Complete sliding units system with high accuracy and can be moved without
deflection.

2. Long life use.

3. Prompt delivery and good service.

4. Large stock and low batch wholesale.

5. ISO9001:2008

6. Competitive price, good quality, delivery fast.

7. Fast response to e-mails or solving questions quickly.

8. Honest cooperation and service.
