GH-SW640Pro-CL2 SELF-DEVELOPED SWIR Camera

GH-SW640Pro-CL2 is based on an in-house developed InGaAs detector with 640x512
pixels. It has the advantages of 700Hz high frame rate, high quantum efficiency,
and low noise. The product adopts CameraLink interface, and users can integrate it
into the application system quickly and easily.



With its advanced features and capabilities, this camera is an ideal choice for
various applications such as surveillance, astronomy, machine vision, industrial
process monitoring, and medical imaging.


Item Description
Sensor Model GHOPTO InGaAs short-wave infrared sensor
Spectral Range 900nm ~ 1700nm
Pixel Size 15um x 15um
ADC 8bit / 14bit
Frame Rate & Resolution 533fps@640 x 512 / 700fps@640 x 512
DDR3 Memory 4Gb
Conversion Gain HG:106uV/e-(1.5fF) MG:20uV/e-(8.0fF) LG:0.82uV/e-(195fF)
Dynamic Range TBD
Readout Noise 18e-(HG CDS) 60e-(MG CDS) 500e-(LG CDS)
SNR HG:17Ke- MG
Dark Current 30fA@0. 1V&18°C
Exposure Time 31.25us~1.7ms@533fps 23.81us~1.3ms@700fps
Shutter Global Shutter
Binning Software 2 x 2 ,3 x 3 ,4 x 4
Data Interface
Data Format Mono8 / Mono12
Cooling Performance Constant temperature,below ambient temperature 20 ~ 25°C
Power Supply DC12V power adapter
Power Consumption 130g
Temperature TBD
Humidity Working Temperature: -40C ~ +70C Storage Temperature: -45C ~ +85C
Humidity: 10% to 90%
Camera Size 68 x 68 x 89.1mm
Camera Weight <500g
Lens Mount C mount
Software Support CameraLink card development kit
Application Scenarios Can be used for short-wave infrared imaging, spectral
imaging, monitoring (night vision), semiconductor detection, medicine and biology,
optical fiber communication, astronomical science, high temperature imaging,
humidity distribution imaging.

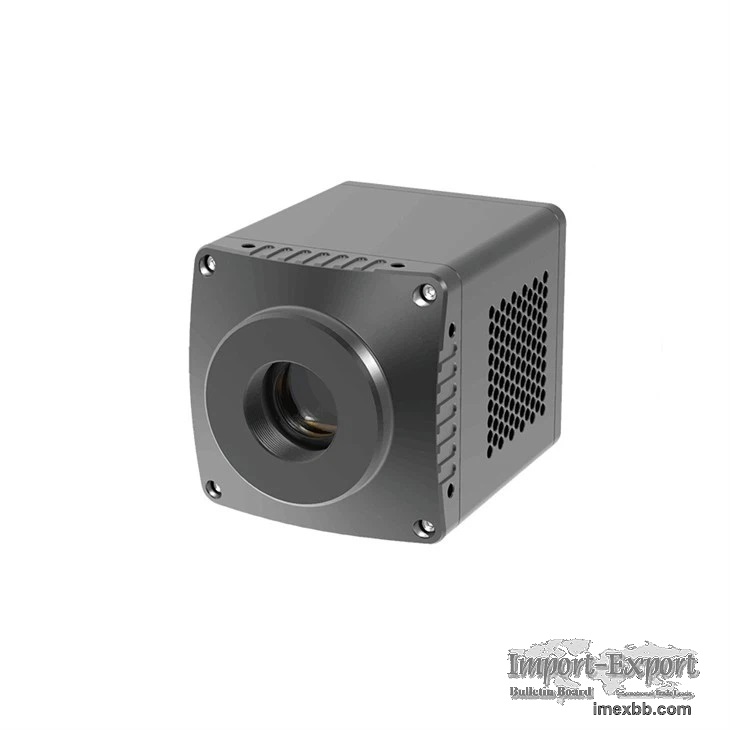

GH-SW640Pro-CL2 SELF-DEVELOPED SWIR Camera
