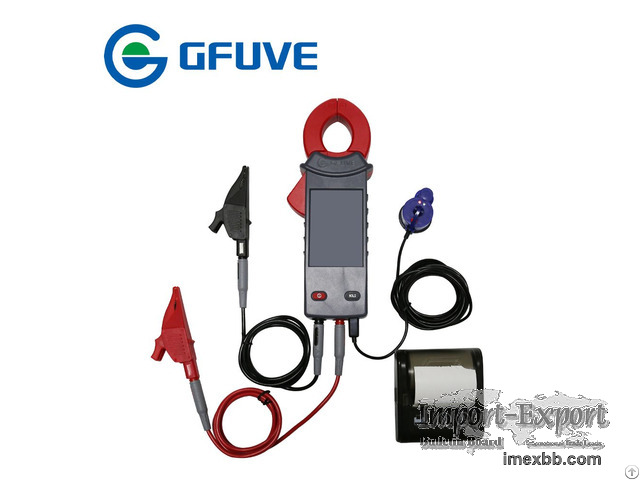

GFUVE 600V/600A handheld single-phase energy meter tester GF112D

GF112D is a single-phase handheld electronic meter test unit in accuracy class
0.1or 0.2, used for testing single phase electricity meters error on site. Wide
measurement range from 1mA to 120A and 0 to 600V, and also can be used to test
alternating current parameters - voltage, current, active power, reactive power,
apparent power, harmonics, phase angle, power factor, frequency, energy etc.

Specification
Warranty: 3 years
Power: Electronic
Customized support: OEM, ODM, OBM, Software reengineering
Place of Origin: Beijing, China
Brand Name: GFuve
Model Number: GF112D
Accuracy class: 0.1% or 0.2%
Power supply: AAA type, Li rechargeable battery, 2700mAh, 3.6V
Measuring range: 0-600V/0-600A
Frequency: 40Hz~70Hz
Connection mode: 1P2W
Power measurement: active power, reactive power, apparent power measurement
Pulse output constant: 25000
Pulse input constant: 1-25000
Display: 225x61x38 Aperture of current clamp: 30mm or 50mm
Dimension: 300 V CAT III

Minimum Order: 1 sets
