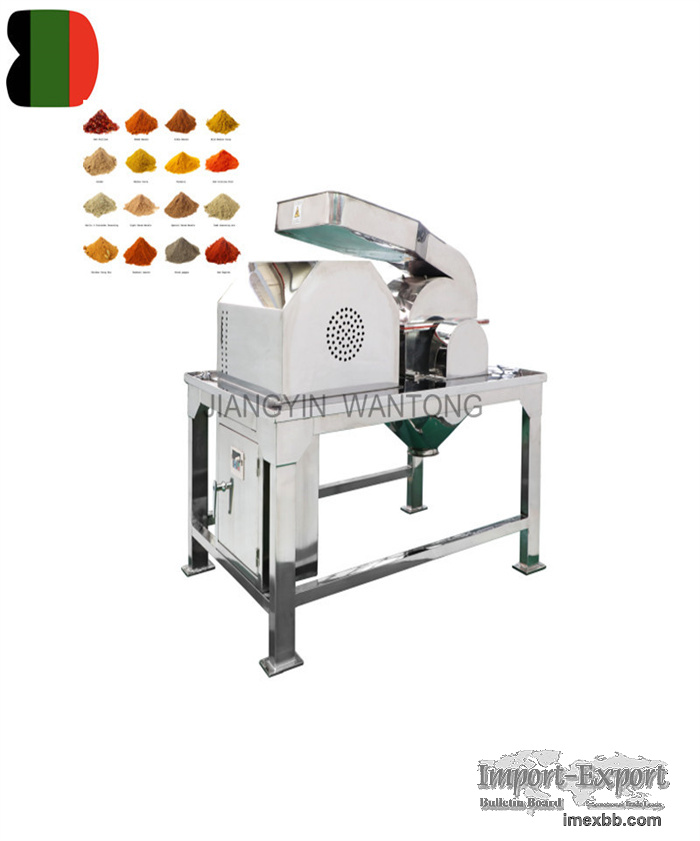

GFSJ66 red dates hammer mill powder making crushing crusher

GFSJ66 red dates hammer mill powder making crushing crusher milling pulverizer
machine
Products Details
1. Main application
GFSJ red dates hammer mill powder making grinding grinder milling crusher
machine pulverizer is used to grind the raw material into fine powder. It meets
the requirements of GMP Standard. GFSJ red dates hammer mill powder making
grinding grinder milling crusher machineis a kind of pulverizer to make fine
powder from big-size material. GFSJ red dates hammer mill powder making
grinding grinder milling crusher machine can be widely used in pharmaceutical
industry, chemical industry, foodstuff industry, powder metallurgy, cosmetic
industry, dying stuff industry, etc.

2. Working Principle
GFSJ red dates hammer mill powder making grinding grinder milling crusher
machine is used to grind the big-size material into small granule or fine
powder. The material is fed on is used to mix several kinds of raw material
into even mixture. There are two rotary shafts: positive one and negative one.
The positive shaft is driven by the shaft connector, which is connected to the
reducer. Meantime, the negative shaft rotates accordingly. As one part, the
hoop and the drum, which are connected together by the belts, are fixed on the
shafts. When the shafts rotates, the hoop and the drum will move in cycles to
mix the inside materials together.

3.Structure
(1) The red dates hammer mill powder making grinding grinder milling
crusher machine mainly consists of transmission system, the hoop, the
material drum and the base. The transmission system includes the motor, the
reducer, the shaft contactor, and the positive and negative shafts. The drum
is fixed on the hoop, angled with the horizontal line. This ensures the even
mixing effect.
(2) The drum is fixed on the hoop and it can be taken off easily from the hoop.
So normally, one or two drums are prepared for changing.
(3) The advantage of the red dates hammer mill powder making grinding grinder
milling crusher machine: compact structure, easy operation, easy cleaning,
beautiful appearance, small holding area, etc.

4. Technical parameters
Model GFSJ-8 GFSJ-16 GFSJ-32
Capacity (kg/h) 10-100 100-300 300-800
Fineness (mm) 20-120
Motor power (kw) 3 7.5 11
Spindle speed (rpm) 2350-4360 1000-2400-4400
Overall size (mm) 1050*600*1600 1100*860*1520 1280*950*1600
Weight (kg) 150 300 450
