GEOGRID WARP KNITTING MACHINE

The main characteristic of a composite geotextile made by warp knitting
machine is that the intersection of warp and weft is not curved and they are
in a straight state. The two are bound firmly with binding wire, which can
be integrated and synchronized, bear external force and distribute stress.
When the external force is applied to tear the material, the yarn will
gather along the initial crack to increase the tear strength.

RUN FENG YUAN BIAXIAL WARP KNITTING MACHINE FOR SALE

RSM3/1 186/215/247 Inch E5/E6/E8/E9 Geogrid Warp Knitting Machine
RSM3/1 186/215/247 Inch E5/E6/E8/E9

Applications: Geogrid textile

GEOGRID WARP KNITTING MACHINE SPECIFICATION

RSM3/1 (186"/215"/247") E5/E6/E8/E9 Geogrid Warp Knitting Machine
Gauge E5, E6, E8, E9
Working Width 186", 215", 247"
Bar Number 2 ground bars, 1 warp insertion bar
Speed 20-800rpm (Depends On Pattern And Material)
Shogging Manner Pattern Disc
Let-off Manner EBA System
Take-up System EWA System
Needle Type Compound Needle
Main power 7.5KW (186"), 11KW (215", 247")

There are many warp knitting machine manufacturers, but we are one of the
best choices for you.

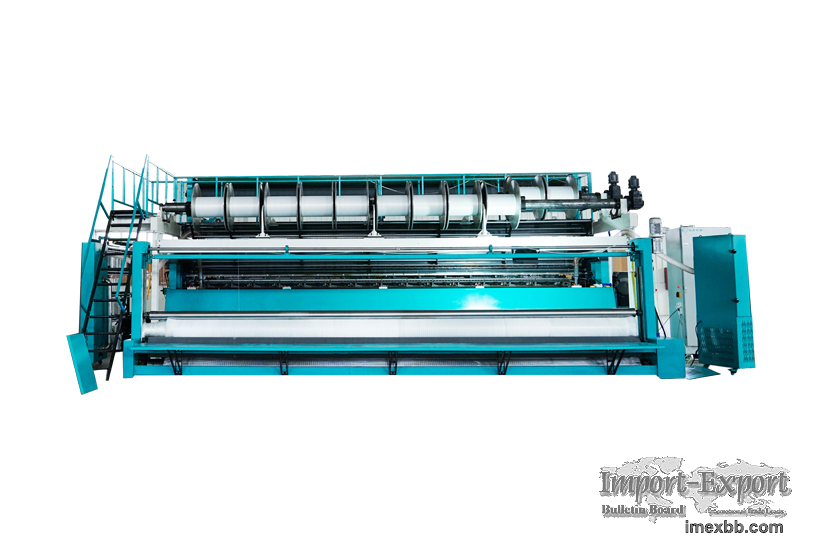

GEOGRID WARP KNITTING MACHINE
