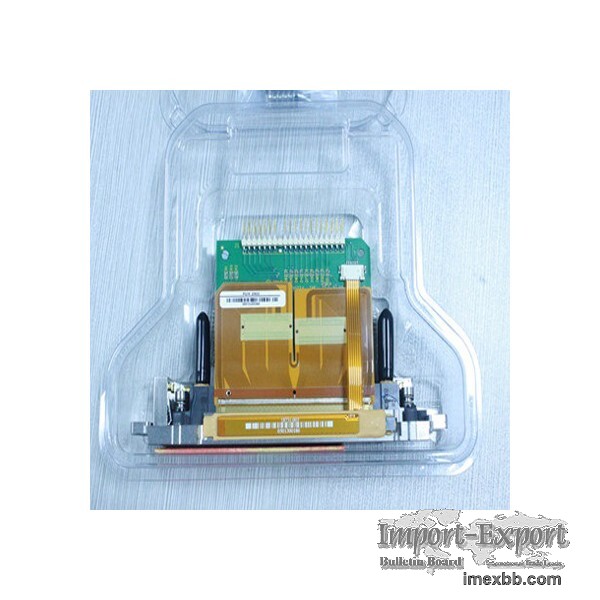

Genuine Spectra Polaris PQ 512/15 AAA Printhead

Spectra Polaris PQ 512/15 AAA Printhead
Spectra Polaris Printhead PQ-512/15 AAA has 512 independent channels arranged in multiple rows at 200 dots-per-inch spacing for single color operation, or 100 dots-per-inch spacing for two color operation.

The Polaris PQ-512 / 15 AAA Printhead has 512 independent channels arranged in multiple rows at 200 dots-per-inch spacing for single color operation, or 100 dots-per-inch spacing for two color operation.

Spectra polaris printhead is designed for binary jetting using a 15-picoliter native drop size with 8-meters per second nominal drop velocity for jetting fluids in the 8 to 20 centipoise range. Using VersaDrop jetting technology, the printhead is capable of adjustable binary operation at drop sizes up to 30 picoliters with resolutions up to 1000 dpi.

Building upon the legendary reliability and performance of the Spectra Nova and Galaxy Printheads, the Polaris PQ-512 AAA family of printheads uses field proven materials and a repairable design to deliver a long service life and consistent output. And by leveraging the inherent flexibility of the Q-Class platform, the

Polaris PQ-512 AAA offers even greater jetting performance, nozzle packing density, and configuration flexibility.

The PQ-512 / 15 AAA Printhead is compatible with a broad range of inks, including UV-curable, aggressive organic solvent and aqueous inks and associated maintenance fluids.

Warm Tips: The printhead should be installed by technical person

Specifications

- Technology: Piezo Electric

- Max. Resolution: 1000 dpi

- Cal. Droplet Size: 15 pico litre

- Adj. Range for Droplet Size: 15-30 pico litre

- Tot. Amount of Nozzles: 512

- Nozzle Spacing: 127 microns (1 colour) or 254 microns (2 colours)

- Firing Frequency: 40 kHz (20 kHz for 30 pic

- Operating Temperature: up to 60°C

- Ink Compatibility: Solvent water-based and UV Inks
