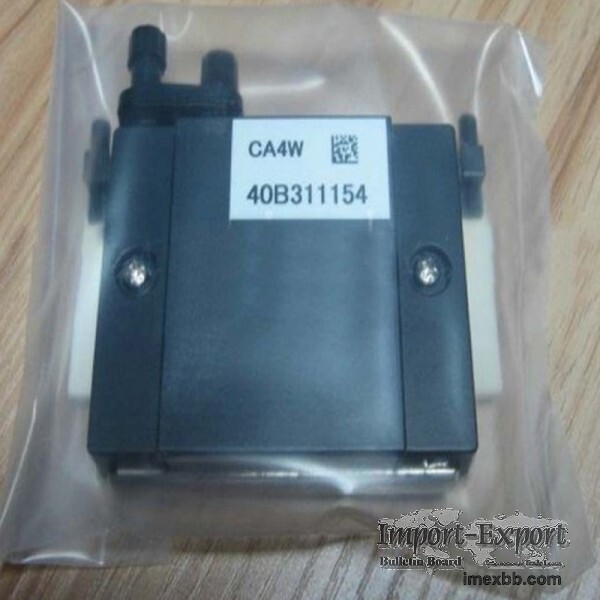

Genuine Printhead Toshiba CA4W / Xaar 318

Genuine Printhead Toshiba CA4W / Xaar 318
The Toshiba TEC CA4W is suitable for UV curable and Oil based inks, has 2 ink inlet ports (which can be easily removed to be replaced with a 1 ink inlet assembly) and a chassis which provides a built-in water channel and complete sealing designed for easy temperature control.

This is Toshiba original printhead. It carries a one year warranty. The jig tools used to calibrate and fit this head are available as related products.

This Toshiba TEC CA4W is supplied with head ID, voltage and waveform information. CA4W heads are identical to CA4LB and CA4LE printheads. This printhead carries a one year manufacturer warranty.


Specifications:

Technology: On Demand Piezo Electric

Max. Resolution: 1200 dpi

Droplet Size: 6 to 90 pico litre

Maximum Grayscale Levels: 16

Tot. Amount of Nozzles: 318

Nozzle Spacing: 169 microns

Firing Frequency: 28 kHz (1 drop) - 2.8 kHz (15 drops)

Driving Voltage: 14 - 31 V



EFI

Rastek H650

Rastek H700

Minimum Order: 1 pieces
