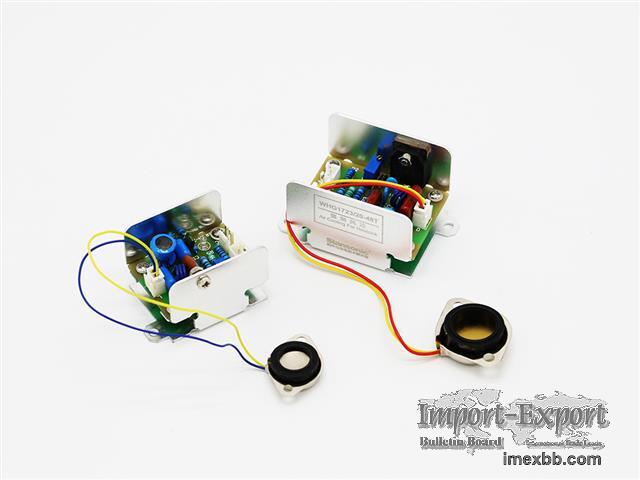

General Ultrasonic Atomizer Kit

Ultrasonic atomizer transducer and ultrasonic atomizing driving circuit are
designed separately and installed flexibly, which is more suitable for OEM
development

High quality transducer, providing more durable and stable ultrasonic
atomization performance

Ultrasonic atomizer with many options for frequencies and powers

Ultrasonic atomization with small particles, minimum average particle size
1μm

Ultrasonic atomizing transducer for optional protective coating against
corrosive liquids

Ultrasonic atomization is a physical process in which the liquid is crushed
and torn into small droplets by the energy of ultrasonic oscillation. In
principle, ultrasonic atomization can be roughly divided into three types:
single piezo type, mesh type and Langevin transducer type. The most common
ultrasonic atomization in the market refers to single piezo ultrasonic
atomization and microporous mesh atomization. The single piezo type is the
most common ultrasonic atomization method. Its principle is the liquid
atomization through the piezoelectric ceramic plate vibrating directly in
the liquid to produce the sound field. This type of ultrasonic atomization
has the advantages of fine atomization particles and long lifetime of
ultrasonic atomization transducer. Common applications include ultrasonic
atomization humidifier, atomization aromatherapy machine, bonsai
atomization, etc. To obtain more professional knowledge about ultrasonic
atomization, please visit Technology page in our website: ‘Ultrasonic
Atomization’.

General ultrasonic atomizers kits include Siansonic ultrasonic humidifier
transducer (single piezo type) and ultrasonic atomizer driving circuit
module, which is convenient for customers to carry out secondary development
of various atomization devices. Siansonic's unique piezoelectric ceramic
metallization and protective layer technology make its ultrasonic atomizing
transducer have higher durability and stability, and can work with various
acid-base corrosive liquids and organic solvents. A resonant frequency of up
to 3MHz can provide ultra-fine atomized droplets of only 1 micron. As one of
the earliest manufacturers of ultrasonic atomizing transducers in China,
Siansonic has been selected by hundreds of companies all over the world in
the past 40 years. The cumulative sales of ultrasonic atomizing transducers
have exceeded 10 million pieces, and are widely used in various industries,
such as humidifiers, aromatherapy machines, medical nebulizers, disinfection
machines, spray pyrolysis, spray drying, precision spraying, etc.

Minimum Order: 1 grams
