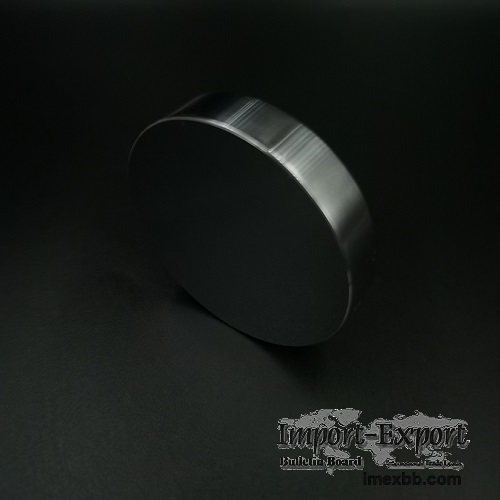

Ge Window

At TC Optics germanium window suppliers, you can expect superior performance,
reliability and longevity - all at an unbeatable price point. Germanium (Ge) is
in the range of 2-12 μm. Germanium is the most commonly used for making
optical lenses and optical windows in high-efficiency infrared imaging systems.
Due to the wide transmission range and opacity of visible light, Germanium is
very suitable for infrared lasers and optical systems for the manufacture of
optical components. Germanium's high refractive index and minimal surface
curvature make it an ideal material for making low-power imaging systems.

Specification of Ge Window
Germanium (Ge) windows are widely used in a variety of scientific and
industrial applications due to their excellent optical properties, particularly
in the infrared (IR) region. Germanium has a high refractive index and a low
absorption coefficient in the mid-IR range, making it an ideal material for use
in IR spectroscopy and imaging applications. Germanium windows are also used in
high-power laser systems and as protective windows for thermal imaging cameras.

Material Germanium
Diameter 1 to 500 mm
Diameter Tolerance +0/-0.02 mm
Thickness Tolerance ±0.01 mm
Surface Quality 10月5日
Surface Figure λ/10
Parallelism 1 Minute
Coating Uncoated, AR, HR, Beamsplitter, etc.

Germanium IR window is a type of infrared window made from Germanium material.
It is transparent to long-wave infrared radiation and has a high refractive
index, making it ideal for use in infrared optics. Germanium IR window can
transmit light in the wavelength range of 2-16 µm, which is in the far-infrared
to mid-infrared region. This transparency property makes it ideal for use in
infrared imaging systems, as well as in spectroscopy and remote sensing
devices. Germanium IR window can be used in harsh environments, as it is highly
resistant to thermal or mechanical shock due to its high thermal conductivity.
Overall, Germanium IR window is a versatile material with excellent optical,
thermal and mechanical properties, making it an ideal choice for a wide range
of infrared applications.

Types of optical window glass for your needs:

Fused silica window

Sapphire optical window

ZnSe window

bk7 fused silica

Silicon window

Borosilicate glass for sale

Float glass optical windows

Whether you're involved in research, development, or industrial applications,
our custom optical window is the answer to your laser processing needs.

Properties and Characteristics of Germanium Windows
Optical Properties (germanium window transmission)
Germanium windows have a high refractive index of about 4.0 and a low
absorption coefficient in the mid-IR range, making them an ideal material for
use in IR spectroscopy and imaging applications. They have a broad transmission
range from 2-16 μm and are particularly useful in the 2-12 μm range.

Germanium windows have high transmittance in the infrared region, particularly
in the 2-16 µm wavelength range. Their transmission rate reaches up to 70% at 2
µm, 50% at 4 µm, 27% at 8 µm and 14% at 12 µm. Germanium windows are commonly
used in thermal imaging applications, as well as in infrared spectroscopy and
remote sensing systems. They are well-suited for use in applications that
require high thermal resistance and high refractive index in the infrared
region.

Physical Properties
Germanium windows are a relatively soft material with a Knoop hardness of about
780. They have a density of 5.33 g/cm3 and a thermal conductivity of about 59
W/mK, making them thermally conductive and resistant to thermal shock.

Applications of Germanium Windows
Infrared Spectroscopy and Imaging
Germanium windows are commonly used in infrared spectroscopy and imaging
applications due to their high transmittance in the mid-IR range. They are
often used in Fourier transform infrared (FTIR) spectrometers, where they are
used as beamsplitters or as windows for sample chambers.

High-Power Laser Systems
Germanium windows are also used in high-power laser systems, where they are
used as protective windows or lenses due to their high thermal conductivity and
low absorption coefficient in the visible and near-IR range.

Thermal Imaging Cameras
Germanium windows are used as protective windows in thermal imaging cameras,
where they are used to protect the sensitive infrared detector from dust and
other contaminants while allowing infrared radiation to pass through.

Handling and Maintenance of Germanium Windows
Germanium windows should be handled with care to avoid scratching or other
damage to the surface. They can be cleaned using a mild detergent and water
solution or with isopropyl alcohol. It is important to use a soft, lint-free
cloth or a lens cleaning tissue to avoid scratching the surface.

FAQs of GE windows
What is the transmission range of Germanium windows?
A: Germanium windows have a broad transmission range from 2-16 μm and are
particularly useful in the 2-12 μm range.

Can Germanium windows be used in high-power laser systems?
A: Yes, Germanium windows have a low absorption coefficient in the visible and
near-IR range, making them an ideal choice for use in high-power laser systems.

What is the refractive index of Germanium?
A: The refractive index of Germanium is about 4.0.

What is the thermal conductivity of Germanium?
A: The thermal conductivity of Germanium is about 59 W/mK.

What is the typical thickness of Germanium windows?
A: Germanium windows are available in thicknesses ranging from a few
millimeters to several centimeters, depending on the application.

As an optics manufacturing company, we will do our best to meet all the needs
of customers.

Minimum Order: 100 pieces
