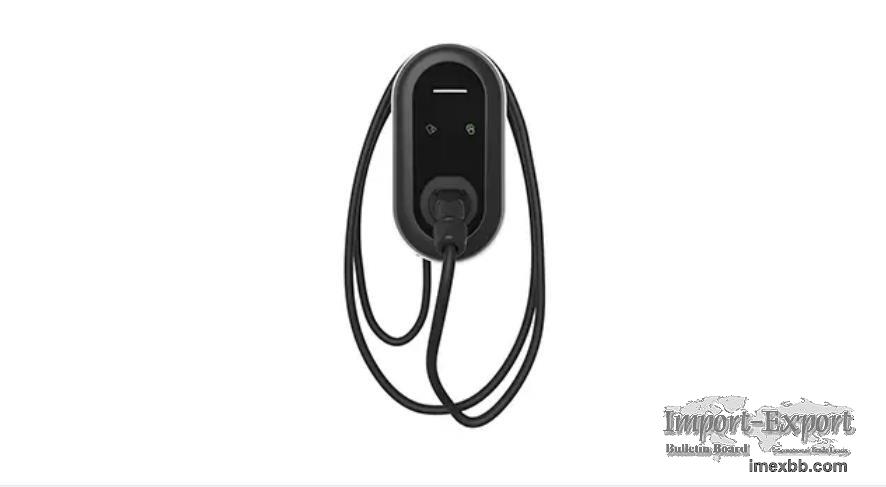

GB/T EV Charger

Charge-Uni AC and DC products comply with the GB/T 18487.1-2015 standard. The
AC Charger comes with compact size and simple design, and customers can choose
wall-mounted or stand-pillar installation. The DC charger has a power of up to
180 kW, which further reduces charging time and improves overall charging
efficiency.

Types of GBT EV Charger

GB/T EV AC Charger
GB/T AC chargers adopt AC fast charging technology, with high current output to
achieve more efficient charging.

GB/T EV DC Charger
The GB/T DC charger is designed with a double-protected air inlet to withstand
the harsh environment.

GB/T EV Charger Drawing
Model Model Number F1
Rated Power 30kW 40kW
Input Parameters Input Voltage AC323V~ AC437V
Input Current 657A ≤79A
Output Parameters Output Voltage DC200V ~ 750V
Output Current 80A
Basic Features BMS Auxiliary Source Standard 12V (24V can be customized)
Peak Efficiency 295%
Start Mode QR code, RFID (optional), VIN (optional)
HMI 7-inch touch LCD
Connectivity Ethernet/4G (optional)
Cable Length 5m
Dimension(W*D*H) 600mmx200mmx750mm
Gross Weight 65kg
Installation Method Wall-mounted; Floor - standing (optional
bracket)
Protection IP54
Environmental -30-50C (50-65 power derating); 5%-95% (no
condensation)
Altitude 2000m (2000-4000m power derating)

GB/T EV Charger Advantages
GB/T AC/DC products have a charging data management function to ensure the
integrity and security of the customer's charging data. The product's emergency
stop button is designed to cut off the power supply from the power circuit in
case of emergency to prevent the failure. CU products are all supported by
credit cards, WeChat, Alipay, and other activation mode.

Difference between AC and DC GBT Charger
As the electric system of an EV is a DC system, the AC power is not able to
charge the power battery directly during AC charging, it needs to pass through
a component called On-board Charger (OBC), which performs AC to DC conversion
and is then supplied to the power battery after the voltage is transformed
according to the command of the BMS.

In the case of DC charging, the DC pile itself is an AC/DC rectifier and DC/DC
transformer, which can be converted from AC to DC directly outside the vehicle
according to the needs of the BMS, replacing the role of the on-board charger,
hence the DC pile is also known as a non-on-board charger.

GB/T Charger Characteristics
Charging interface is a "nine-hole" design, the picture shows the DC charging
gun head. The top middle CC1 and CC2 are used for electrical connection
confirmation, while S+ and S- are the communication lines between the off-board
charger and the electric vehicle. The two largest holes, DC+ and DC-, are used
for charging the battery pack and are high current lines; A+ and A- are
connected to the off-board charger and provide low voltage auxiliary power for
the electric vehicle, with earth at the very center.

GB/T EV Charger FAQ

What is the charging efficiency of GB/T AC and EV Chargers DC?

The charging efficiency of GB/T AC reaches 95%, and the charging efficiency of
DC products reaches up to 96%.

What is unique feature about GB/T EV CHARGER?

Our GB/T EV charger has high protection degree, low noise design and better
environmental adaptability.

As a reliable ev car charger supplier, we will do our best to meet all the
needs of customers.
