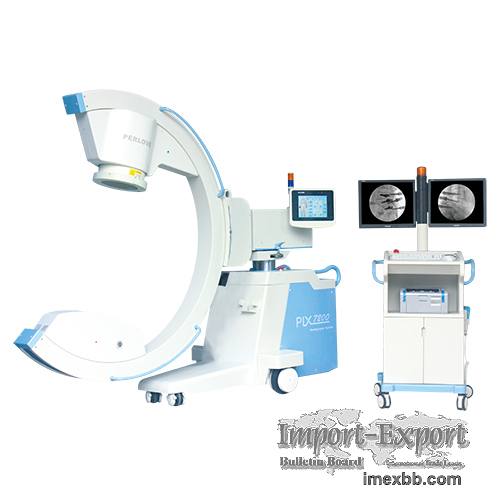

Gastrointestinal x ray Machine PLX7200 C-arm System

Counterbalanced,Isocentric Electric Design
*C-arm with isocentric design support center area conical volume
imaging,provide quality multi-dimensional image for clinical diagnosis.
*The central beam always remains in the isocenter,which eliminates the need
for repositioning and enables both time and dose savings.

motorized rotated in 360°

*Electric Vertical and horizontal extension,all angles of rotation and rail
sliding,provide comfortable operation environment.
*Four-dimension electric motion control technology with isocentric C-arm
allow smooth positioning,satisfy carieties of precise complex angles request.

motorized horizental stretch
motorized up and down
motorized slip along the orbit

Intelligent control system
humanized,convenient,smooth
*Rotating touch screen control panel design allow free rotation on both sides
of the unit,it can be used to parameter adjustment and work mode choice.
*Humanized LCD touch screen,accurate apr parameter setting,allow the easy and
fast operation during surgery.
*Hand-held controller for parameter and movement control,you can operate the
machine even you are away from it.

Cone beam multi-angles radiography
*190°orbital rotation and continuous pulse exposure realize Maximum density
projection.
*Multi-angle dynamic continuous images on same part can be acquired.
*Replay the whole rotation dynamic images,volume rendering technique(VRT).
*Multi-angles observation during prepperative,intraoperative and
postoperative,ensure accurate and efficient diagnosis and treatment.
*Choose appropriate sequence frames according to clinical need.both image
quality and radiation protection can be assured.

Application
*Widely use in Orthopedics,general surgery,orthopedic surgery,urology,spinal
surgery, abdominal surgery,gastroenterology department,gynecology and
operating room etc.

*Bone tissue biopsy,spine pedicle screw implantation,long tubal bone marrow
nail fixation and hand,foot fracture surgery with screw fixation.


Precise imaging and Perfect visualization
*Digital High frequency X-ray generator with micro-focus improve resolution
and sharpness.
*Intraoperative 3D imaging enables intraoperative revisions and evaluation
and replaces postoperative CT control.
*High frequency technology generator assures the best image in every
operating condition along with reduced patient dose and extended x-ray tube
lifetime.

High frequency x-ray generator
image intensifier

*Optimally matched,fully digital imaging chain from image acquisition to
viewing and archiving.
*Mega pixels digital image storage.
*12 bit acquisition and output.

Image acquisition and processing
*Dual Large 19" HD medical monitors.
*High-brightness,high contrast display system assure abundant,delicate images
and precise details.

Dose-saving features
*Digital pulse dose intelligent control technology meet EU requirments of
medical equipment.

*Real time,continuous pulse fluoroscopy technology,Multiple frequency
adjustment,Instantaneous high tube current
output assure the high quality image and low dose.

Digital pulse dose intelligent control technology

Minimum Order: 1 sets
