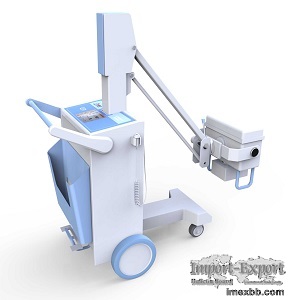

Gastrointestinal x ray Machine PLX101 X-ray Equipment

PLX101/101A/101C
Rocker safety lock design, make your operate much safer
High quality x-ray monoblock assures more details, less dose
Symmetrical adjustable collimator for accurate positioning and better
exposure protection
Aviation aluminum connectors, connection reliable, more safety
Advanced dislocation braking system, flexible movement, flexible braking
Multifunctional cassette storage box design
Features
Our high frequency technology assures the best image in every operating
condition
Along with reduced patient dose and extended x-ray tube life time
The generator provide the right amount of penetration, reducing exposure
times and retakes.
The parameter can be adjusted by the kV and mAs. Multiple security protect
function such as over-voltage, over-current.
50 preset exposure programs allow extensive possibilities to optimize the
exposure and processing parameters according to your preferences.
Fault automatic protection setting and fault alarming display
Parameters are automatically storage when power cut off.
Adopt rotating beam limiting device to adjust the X-ray field and angle
freely.
Adopt manual controller and remote controller to do exposure.
Optional: PLXF152 mobile table for high frequency mobile X-ray equipment.

PLX101D is equipped with built-in battery, can take 200 films when full
charged.

Rocker can move up and down, automatically balance
High quality X-ray monoblock can rotate in ±90°
Options
PLXF152 Mobile Bed For Mobile X-ray Machine
Size: 2000 X 700X 500mm
Range of grid box movement≤1210mm
Size of grid box: 430X 430(17” X 17”)
Bucky Stand
Height: 1770mm
Vertical movement range: 470-1470mm
Grid density: 103L/inch
Grid radio: 10:1
Focus distance: 150cm
Maximum grid box: 17” X 17”

Technical Parameters

Minimum Order: 1 sets
