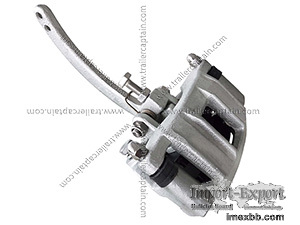

Galvanized Trailer Mechanical Disc Brake Caliper – Forward Pull

√

Trailer Disc Brake

√

Heavy Duty

√

Disc Brake Caliper

√

1700 KG (15”/16” WHEEL)

√

Boat Trailer Disc Brakes

√

2000 KG (13”/14” WHEEL)

√

Galvanized Mechanical Disc Brake

√

Mechanical Disc Caliper

√

Trailer Brakes

√

Forward Pull



The trailer mechanical disc brake calipers have two configurations,
forwarder pull and centre pull. The forward pull is commonly used on
beam/spring axle, and he centre pull is used on independent/torsion axle.

This mechanical forward pull disc brake is old version, it is usually
called as boat trailer mechanical brake caliper. It has a hot dip
galvanized cast iron caliper body with two pieces non-asbestos semi-metal
brake pads and a straight lever. Cast iron and stainless steel are
available. All trailer brake calipers provide corrosion resistance and rust
protection, which are advantageous to prolong the service of marine
trailers.

Features

l Requirement of disc hubs and rotors: Thicknesses from 12 mm to 15 mm.

l Galvanized coated and stainless steel accessories can prevent the
corrosion of seawater.

l Mounting bolts and pads are included. Quick and easy installation.

l Mechanical Disc Brakes are more affordable than hydraulic disc brakes.

l This mechanical disc brake calipers exchange with AL-KO calipers.

Specifications

Ø Axle Capability: 1700 kg (15”/16” wheel), 2000 kg (13”/14” wheel)

Ø Mounting Bolts: 12 mm

Ø Bolt Spacings: 88.9 mm (3.5”)

Ø Max cable pull input (kg) per brake: 300 kg

Product Composition

² Non-asbestos semi-metal brake pads x 2

² Galvanized Cast Iron Brake Caliper Body x 1

² Slide Pin Kit x 1

² Slide Dust Boot x 2

² Straight Lever x 1

Minimum Order: 400 pieces
