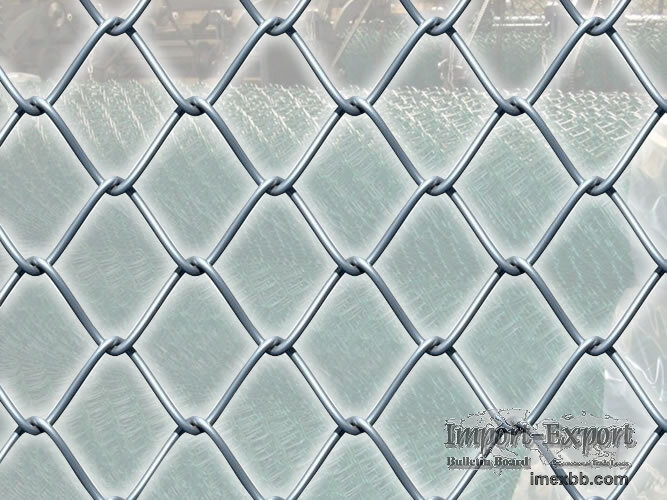

Galvanized Mesh Chain Link Fence

We supply galvanised wire fences of chain link mesh. The finishes can be
electro galvanized, hot dipped galvanized and pvc coated. Mesh opening is
diamond. Fence System includes Diamond mesh fabrics, with or without frames,
posts and concertina barbed wire.

Fabric edge styles :
1) Knuckle-Knukle: The wire is knuckled at both ends (abbreviated as KK)
2) Knuckle-Barbed: The wire is knuckled at the bottom and twisted into a barbed
selvedge at the top (KB)
3) Barbed-Barbed: The wire is twisted in to a barbed selvedge at both ends
(abbreviated as BB)

Classifications:

Chain Link Fence System, Galvanized Fabric, 2.4m height, with barbed wire, Y
frame Steel posts to accept double 300mm height of 6 plus 6 linear rows of
barbed wire ( arm length 500 mm),razor wire, Vehicle Gates 2.4 mts x 8 meter
wide, with padlock mechanism, Pedestrian Gates 2,4 mts x 2 meter wide with
padlock mechanism;

Chain Link Fence, Galvanized 4 meter height, Barbed wire for perimeter fencing
top,Post for Gate / change of direction posts and angle posts,Y frame Steel
posts to accept double 300mm height of 6 plus 6 linear rows of barbed wire (arm
length 500 mm), Razor Wire tops, Vehicle gates 4 mts x 8 meter wide, with
padlock mechanism, Pedestrian gate with 2,4 x 2 meter padlock mechanism;

Framed Chain link commercial fence in 6' and 8' width with 10 gauge galvanized
wire;
Vinyl coated, chain link residential fence with 1 single gate and 2 drive
gates;
Galvanized chain link fence to Italy;
Plastic-Coating galvanized mesh fence, 2.5" opening, 2.5mm wire diameter and
1.2m high, 12 x 15m mesh rolls ( or 6 x 30m rolls ), for Australia and other
countries;
Temporary fence;
Beige Color Chain Link Fence, Mesh Opening : 50mm, Wire diameter : 3.50mm after
coated, Length of the roll : 15m, Width of the roll: 2m, Column: Galvanized and
coated with beige-colored, 2600 x 2.5 inch x 3mm wall thickness, the end of the
column: italic angle of 45 degrees with 3 slots to enter Barbed wire, Barbed
wire: thickness 3 mm after coated. All the items are galvanized and beige-
colored coated, shipping to Saudi Arabia.
Mesh fence in vinyl coated wire (PVC) or galvanized before weaving (GBW) wire.
