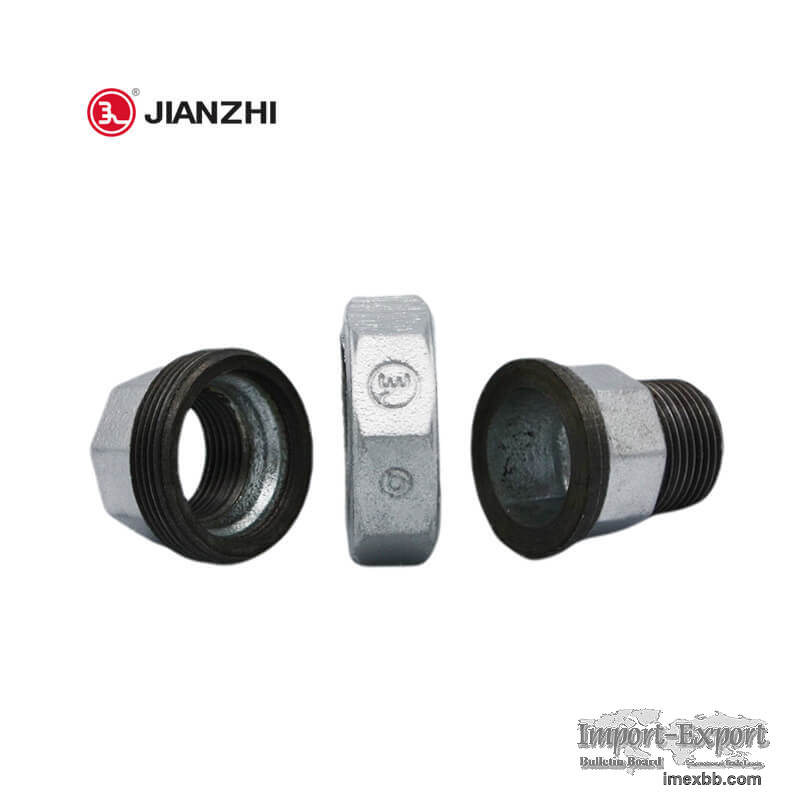

Galvanised Pipe and Fittings Union Nut Fig. 374

Galvanised Pipe and Fittings Union Nut Fig. 374
Size: 1/8''-6''(DN6-DN150) ,
Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 /
BS EN10242
Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554
/ BS EN10226
Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 32Bar
UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI
Technical Data
Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150
Maximum Temperature: 200°C (392°F)
Tensile Strength: 350MPA
Hardness: HB150 (Brinell)
Elongation Rate: 17%
Suitable Applications: Water, Oil, Gas, Petro-Chemical
Material: Malleable Iron

A pipe union is used to connect two pipes and the connection is secure and
semi-permanent. It consists of two pipes connected together via a third piece,
and all three parts are threaded. The pipe unions are similar to threaded
couplings, they are usually easier to remove and allow pipes of different
metals to be securely connected together. This connection method is common in
home and business plumbing systems.

At first glance, a pipe coupling and a pipe union seem very similar. Both use a
male and female threading system to connect the two pipes together. The main
difference between the systems comes from the actual method of joining. Two
connected pipes are screwed together directly, one inside the other. To take
the pipes apart, each pipe connected to the coupling pipe needs to be rotated.
In a complete piping system, this means the entire system needs to come apart
to remove one pipe.
With a pipe union, the two ends of the pipe are not screwed together but are
screwed into a third piece. When one pipe needs to come apart from the other,
the union piece simply screws onto one of the two pipes completely. If both
ends of a pipe are attached using a union, the pipe may be removed on its own
without unscrewing the other pipes in the system.

JIANZHI Pipe union is a type of fitting equipment designed in such a way to
unite two pipes that can be separated without causing any deformation to the
pipes. Any kind of small diameter pipe connection needs to be positively sealed
and easy to install and remove with the help of pipe union.

Any kind of small diameter piping connections requiring a positive seal and
easy assembly as well as disassembly is made with the help of pipe union. In
other words, the pipe unions can easily take two pipes apart. They are widely
demanded in the pipe fitting market.

Three parts of pipe union:
-A nut
-A female end
-A male end
With the joining of the female and male ends, the nuts are used to provide the
necessary pressure to seal the joint. The parts of the pipe union are normally
locked together by at least one radial screw or nut with a sized cross-section.
When severe pulling stress is applied onto the pipe union from the outside, the
locking screw breaks and removes the two parts of the union, which in turn
separates together with the pipes to which they are attached. Under normal
conditions elastically stressed sealing objects ensure the maintenance of water
tightness between the union parts.

Specifications of pipe unions:
Size: 1/8″-3″ class 3000 and 1/8″-2 1/2″ class 6000
Thickness: SCH 10,SCH 40,SCH 80,SCH 160,XS,XXS
Standards for pipe unions:
ASME B16.11-2016 Standard-Specification for Forged Fittings, Socket Welding,
and Threaded
MSS SP83-2018 Standard-Specification for Class 3000 And 6000 Pipe Unions,
Socket Welding, and Threaded
Materials for pipe unions:
Jianzhi Casting Group manufactures and supplies pipe unions with malleable
iron.
Coating: anti-rust oil, galvanized, electro galvanizing, epoxy coating, or as
for clients' requirements.
Package: In wooded cases or pallets, or as for clients' requirements.
